2007 Honda Fit Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Fuel Pressure Regulator Replacement

Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL AND INSTALLATION ).

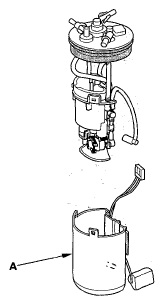

Remove the reservoir (A).

Fig 1: Identifying Reservoir
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the clip (A), then remove the bracket (B).

Fig 2: Identifying Clip, O-Ring And Fuel Pressure Regulator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the clip (C), then remove the fuel pressure regulator (D).
Install the parts in the reverse order of removal with new O-rings (E).

NOTE: Coat the O-rings with clean engine oil; do not use any other oils or fluids. Do not pinch the O-rings during installation.
