2007 Honda Fit Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Throttle Actuator Control Module Replacement
- Remove the passenger's dashboard undercover (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ), the side kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ), and the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).

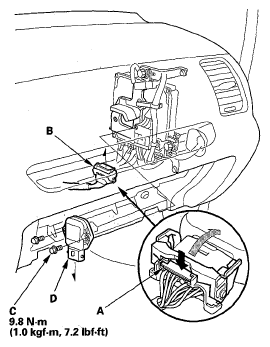

- Push the tab (A), and disconnect the throttle actuator control module connector (B).
- Remove the bolts (C), and the throttle actuator control module (D).
- Install the parts in the reverse order of removal.
