2007 Honda Fit Base, AutomaticFACTORY OEM SERVICE PROCEDURE
SRS Unit Replacement: Removal
NOTE:
If you are only disconnecting SRS unit connector A, skip step 2.
- Disconnect the negative cable from the battery, then wait for 3 minutes before starting work.
- Disconnect both seat belt tensioner connectors (see step 7 on DISCONNECTING SYSTEM CONNECTORS ) and both lap belt tensioner connectors (see step 10 on DISCONNECTING SYSTEM CONNECTORS ).
- Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).

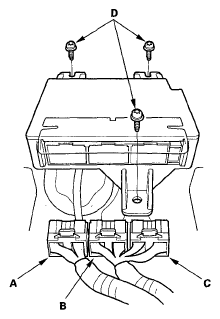

- Disconnect SRS unit connector A (28P), SRS unit connector B (28P), and SRS unit connector C (28P) from the SRS unit.
- Remove the TORX bolts (D), then remove the SRS unit.
