2007 Honda Fit Base, AutomaticFACTORY OEM SERVICE PROCEDURE
ECT Sensor 1 Replacement
- Drain the engine coolant (see COOLANT CHECK ).
- Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).

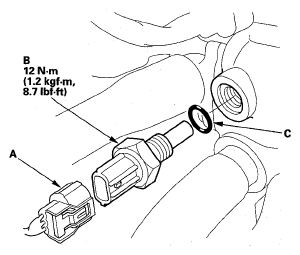

- Disconnect the ECT sensor 1 connector (A).
- Remove the ECT sensor 1 (B).
- Install the parts in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant (see COOLANT CHECK ).
