2007 Honda Fit Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Door Lock Actuator Test
- Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

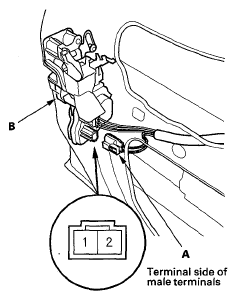

- Disconnect the 2P connector (A) from the actuator (B).
- Check actuator operation by connecting power and ground according to Fig 2. To prevent damage to the actuator, apply battery voltage only momentarily.
- If the actuator does not operate as specified, replace it.
