2007 Honda Element SC, StandardFACTORY OEM SERVICE PROCEDURE

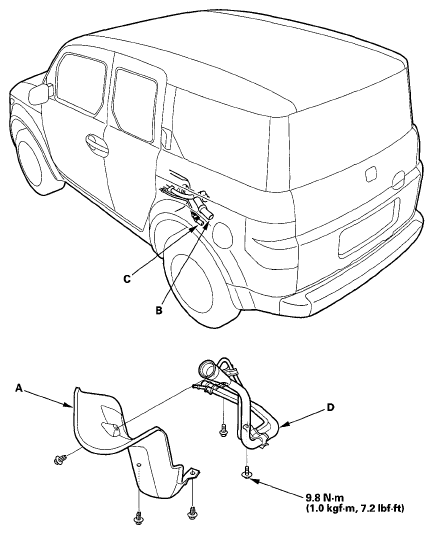

Fuel Fill Pipe Removal/Installation
- Drain the fuel tank (see FUEL TANK DRAINING ).
- Remove the fuel fill cap.
- Remove the fuel fill pipe cover (A).
- Disconnect the fuel fill tube (B) and the fuel vapor hose (C).
- Remove the fuel fill pipe (D).
- Install the parts in the reverse order of removal.
