2007 Honda Element SC, AutomaticFACTORY OEM SERVICE PROCEDURE

Transmission Installation

Special Tools Required

Engine hanger adapter VSB02C000015 *
Engine support hanger, A and Reds AAR-T1256 *
Front subframe adapter VSB02C000016 *

*: These special tools are available through the Honda Tool and Equipment Program 888-424-6857.

NOTE: Use fender covers to avoid damaging pained surfaces.

Clean the ATF cooler (see ATF COOLER CLEANING ).
Install the air cleaner housing mounting bracket (A).

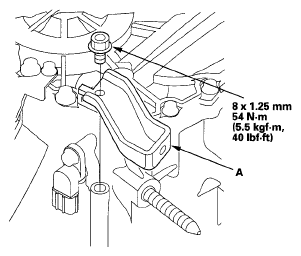

Fig 1: Air Cleaner Housing Mounting Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the front mount (A).

Fig 2: Front Mount With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the rear mount/bracket (A).
NOTE: The illustration shows the 4WD transmission; the 2WD transmission is similar.
