2007 Honda Element SC, AutomaticFACTORY OEM SERVICE PROCEDURE

Transfer Assembly Installation

  1. Clean the area where the transfer assembly contacts the transmission with solvent or carburetor cleaner, and dry with compressed air. Then apply Automatic Transmission Fluid (ATF) to the contact areas. When installing the transfer assembly, be sure not to allow dust or other foreign particles to enter the transmission.

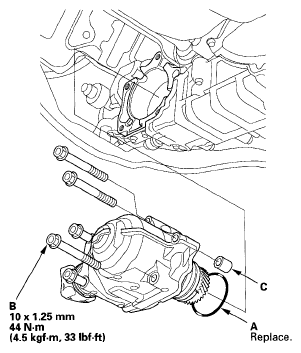

  2. Install the new O-ring (A) on the transfer.
    Fig 1: O-ring, Dowel Pin And Dowel Pin With Torque Specifications
    G06266920Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Insert the five bolts (B) in the transfer housing, then install the transfer assembly with the dowel pin (C).

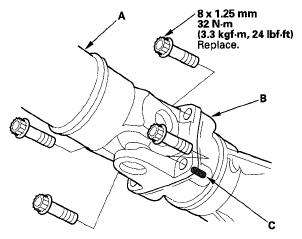

  4. Install the No. 1 propeller shaft (A) to the transfer companion flange (B) by aligning the reference mark (C).
    Fig 2: No. 1 Propeller Shaft And Transfer Companion Flange With Torque Specifications
    G06266921Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Refill the transmission with ATF (see step 5 on ATF REPLACEMENT ).
  6. Start the engine, and run it to normal operating temperature (the radiator fan comes on). Turn the engine off, and check the fluid level (see ATF LEVEL CHECK ).
