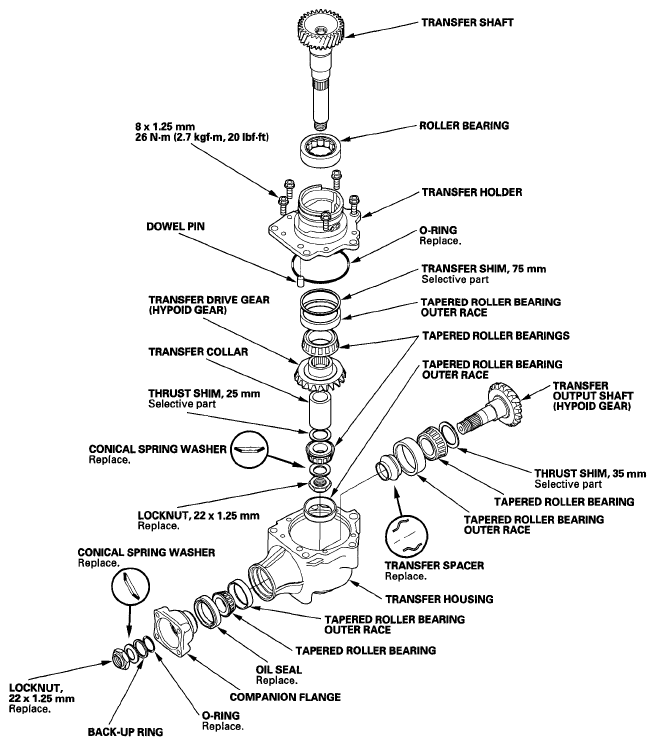

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

NOTE: Refer to the as needed during the following procedure.

Remove the transfer holder (A) from the transfer housing (B).

Fig 2: Identifying Transfer Holder And Transfer Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cut the lock tab on the locknut using a chisel.

Fig 3: Cutting Lock Tab On Locknut
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damaging the transfer housing, always use soft jaws or equivalent materials between the transfer housing and the vise.

Fig 4: Securing Transfer Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the companion flange holder and the holder handle on the companion flange, then loosen the locknut.
Remove the companion flange holder and the holder handle.
Remove the locknut (A), the conical spring washer (B), the back-up ring (C), the O-ring (D), and the companion flange (E) from the transfer output shaft (F).

Fig 5: Identifying Locknut, Conical Spring Washer, Back-Up Ring, O-Ring And Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the transfer output shaft (A) from the transfer housing (B), then remove the transfer spacer (C) from the transfer output shaft.

Fig 6: Identifying Transfer Output Shaft, Transfer Housing, Transfer Spacer And Transfer Output Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the oil seal (A) and the tapered roller bearing (B) from the transfer housing (C).
