2007 Honda Element SC, AutomaticFACTORY OEM SERVICE PROCEDURE
Engine Oil Level Check
- Park the vehicle on level ground, and start the engine. Hold the engine speed at 3,000 rpm with no load (in N or P (A/T Model) or Neutral (M/T model)) until the radiator fan comes on , then turn off the engine, and wait a few minutes.
- Remove the dipstick, and wipe off the dipstick, then reinstall the dipstick.

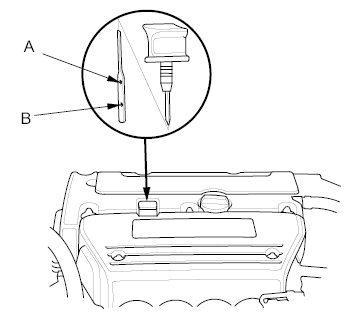

- Remove the dipstick, and check the engine oil level. It should be between the upper mark (A) and the lower mark (B).
- If the engine oil level is near or below the lower mark, add the recommended engine oil to bring it between the upper and lower marks.
