2007 Honda Element SC, AutomaticFACTORY OEM SERVICE PROCEDURE
Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|

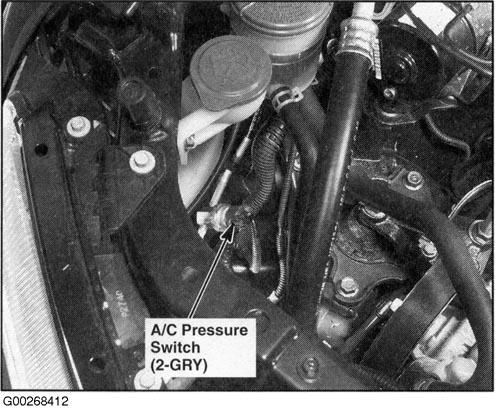

| A/C Pressure Switch | Right front of engine compartment. See Figure. |

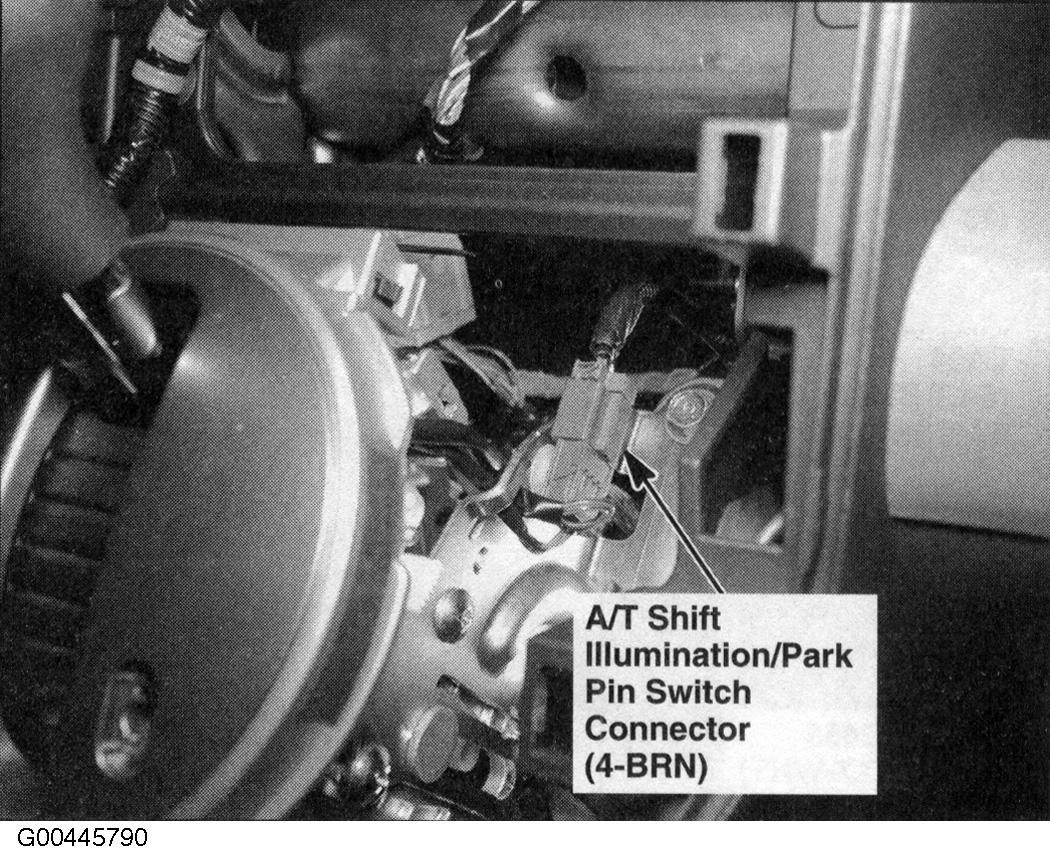

| A/T Pin Switch Connector | Under middle of dash. See Figure. |

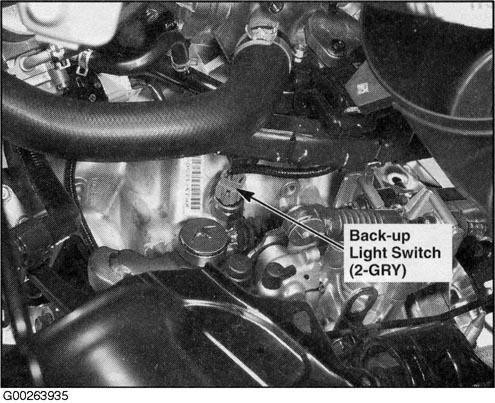

| Back-Up Light Switch | On top of transaxle. See Figure. |

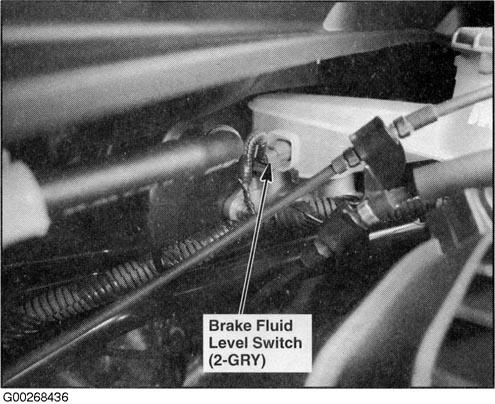

| Brake Fluid Level Switch | On brake fluid reservoir. See Figure. |

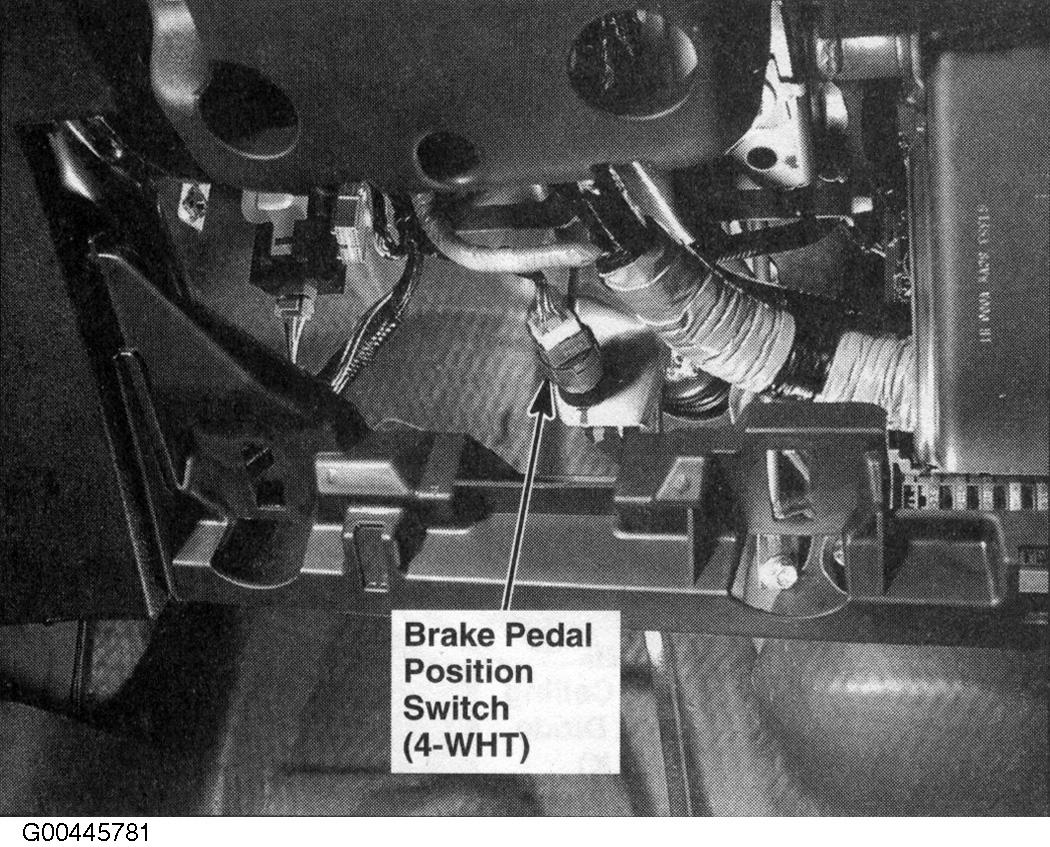

| Brake Pedal Position Switch | On brake pedal support. See Figure. |
| Clutch Interlock Switch | On clutch pedal support. See Figure. |
| Clutch Pedal Position Switch | On clutch pedal support. See Figure. |

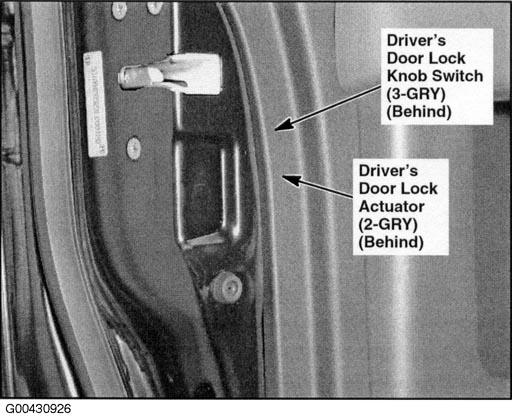

| Driver's Door Lock Knob Switch | Rear of driver's door. See Figure. |

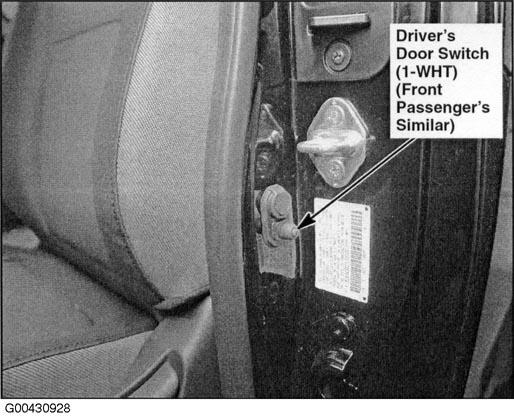

| Driver's Door Switch | Front of left rear door. See Figure. |
| Driver's Seat Belt Switch Connector | Under driver's seat. See Figure. |
| Front Passenger's Door Switch | Front right rear door. See Figure. |
| Front Passenger's Seat Belt Switch Connector | Under front passenger's seat. See Figure. |

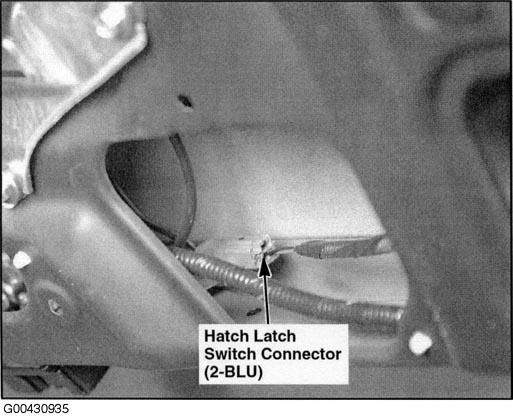

| Hatch Latch Switch Connector | Middle of hatch. See Figure. |
| Horn Switch | In steering wheel. See Figure. |
| Left Rear Door Lower Switch Connector | In left rear door. See Figure. |

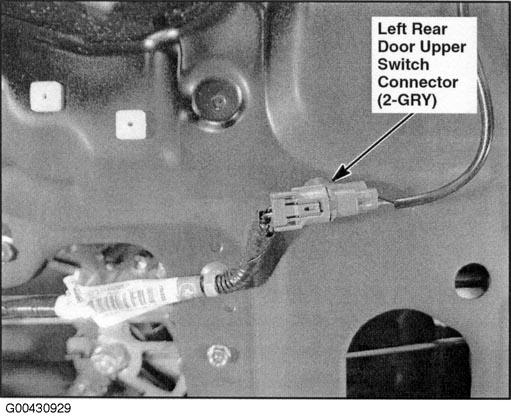

| Left Rear Door Upper Switch Connector | In left rear door. See Figure. |

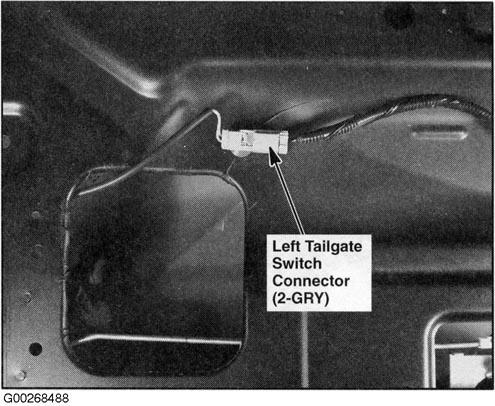

| Left Tailgate Switch | Left side of tailgate. See Figure. |

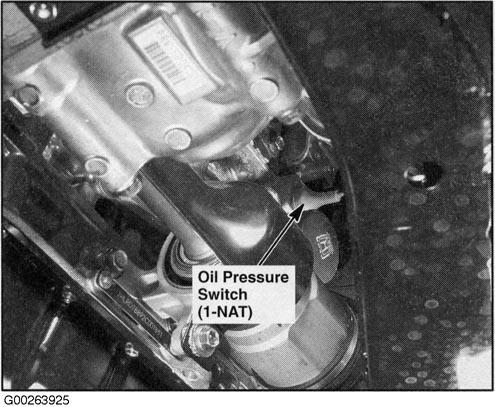

| Oil Pressure Switch | Right front of engine. See Figure. |

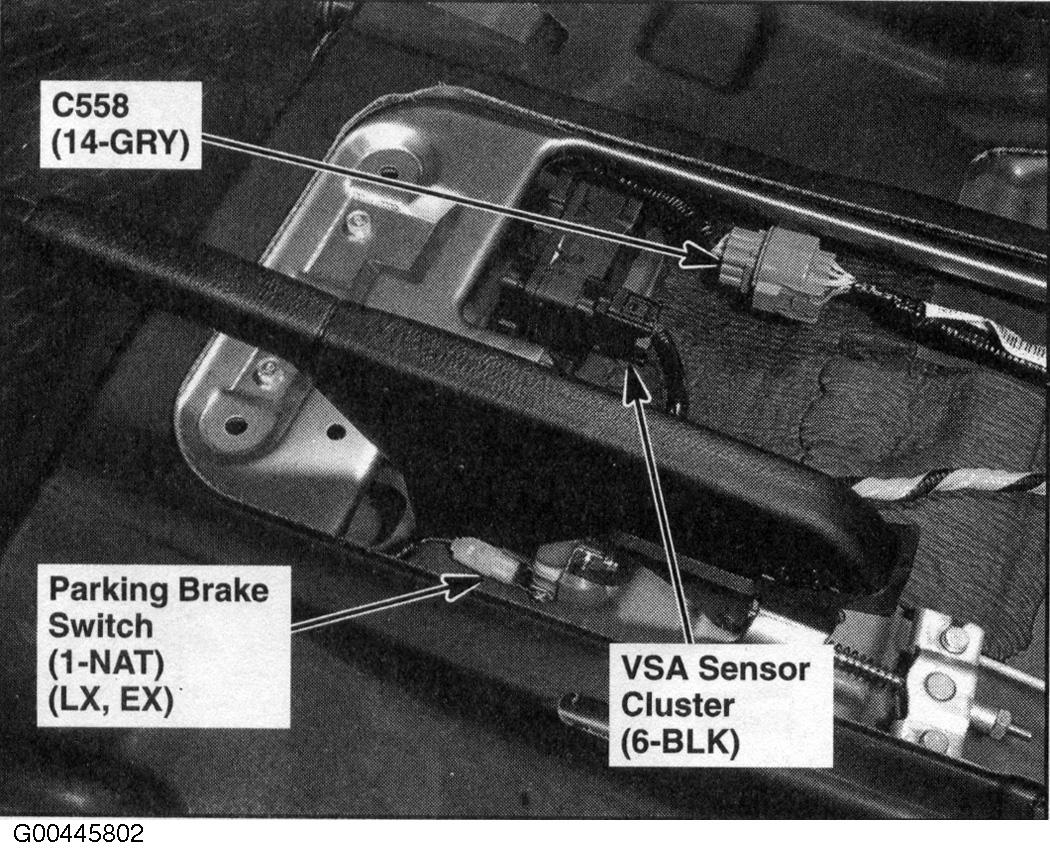

| Parking Brake Switch (EX, LX) | Under center console. See Figure. |

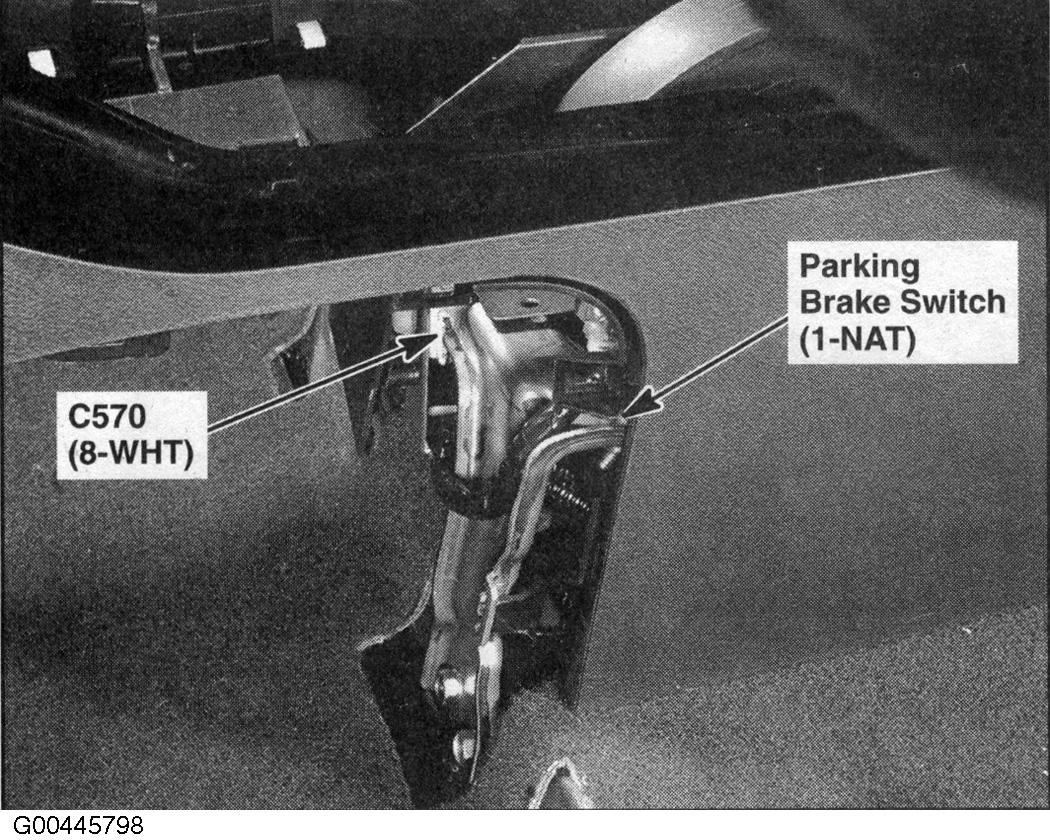

| Parking Brake Switch (SC) | Base of parking brake lever. See Figure. |

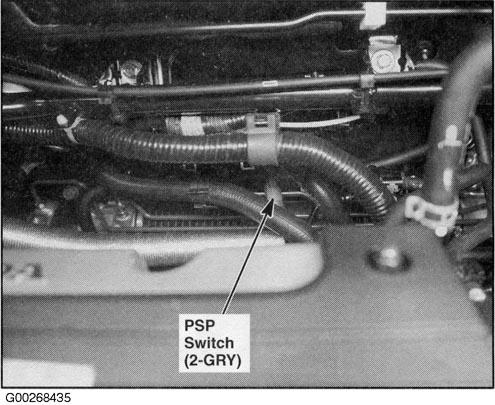

| PSP Switch | Lower center rear of engine compartment. See Figure. |
| Right Rear Door Lower Switch Connector | In right rear door. See Figure. |

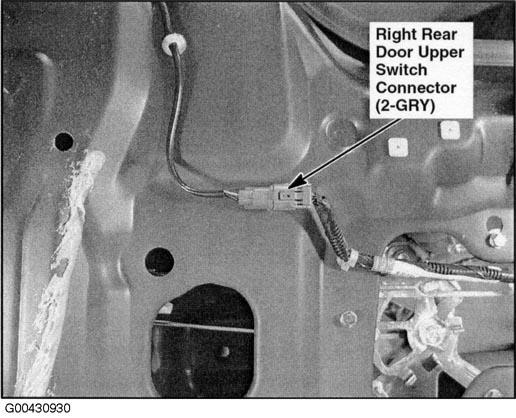

| Right Rear Door Upper Switch Connector | In right rear door. See Figure. |

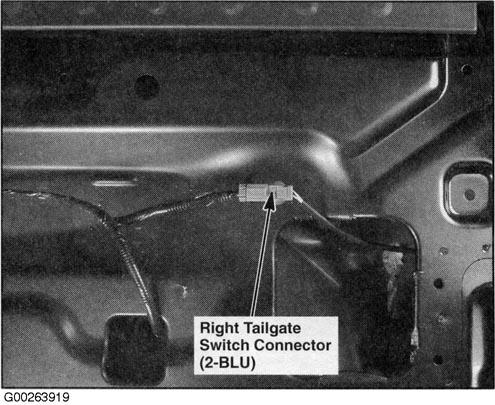

| Right Tailgate Switch | Right side of tailgate. See Figure. |

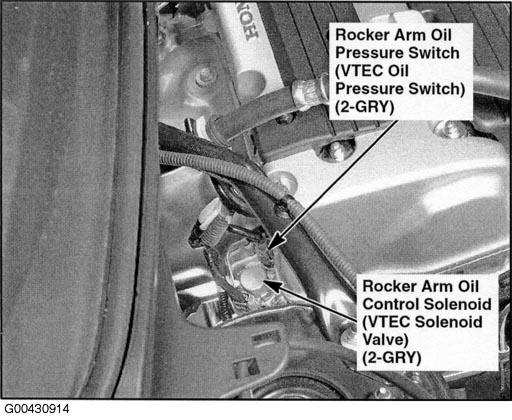

| Rocker Arm Oil Pressure Switch (VTEC Oil Pressure Switch) | On right front of cylinder head. See Figure. |
| Shift Lock Solenoid/D3 Switch Connector | Under middle of dash. See Figure. |

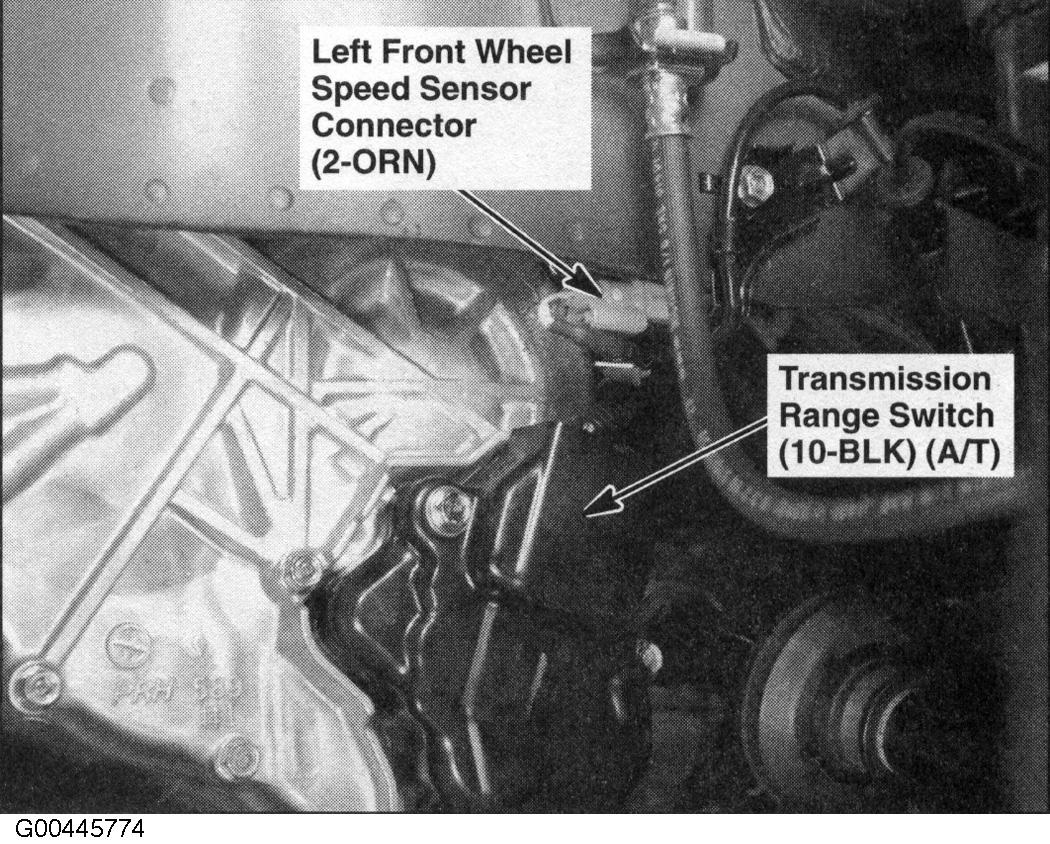

| Transmission Range Switch | On lower rear of transaxle. See Figure. |

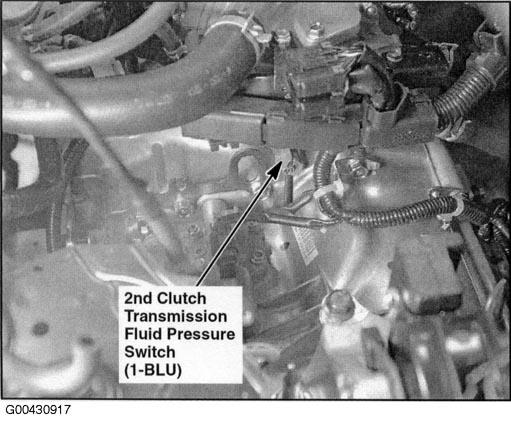

| 2nd Clutch Transmission Fluid Pressure Switch | Top of transaxle. See Figure. |

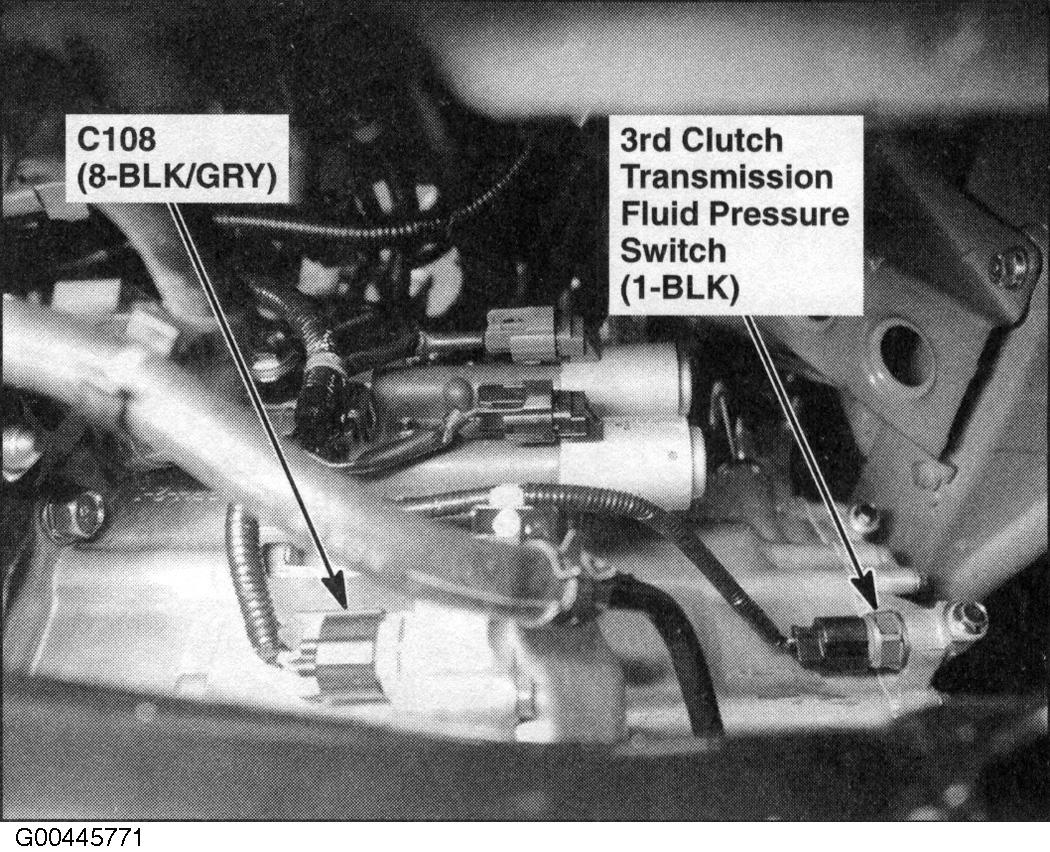

| 3rd Clutch Transmission Fluid Pressure Switch | Rear of transaxle. See Figure. |
