2007 Honda Element SC, AutomaticFACTORY OEM SERVICE PROCEDURE

Connector To Fuse/Relay Box Index

Under-Hood Fuse/Relay Box

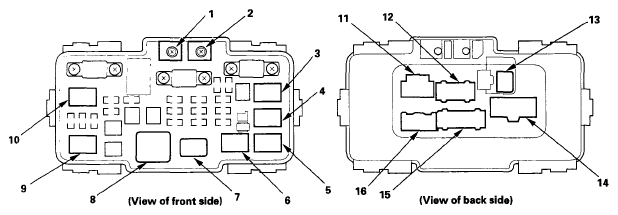

Fig 1: Identifying Under-Hood Fuse/Relay Box
G06266401Courtesy of AMERICAN HONDA MOTOR CO., INC.
UNDER-HOOD FUSE/RELAY BOX CONNECTOR TERMINAL REFERENCE

Socket Ref Terminal Connects to
A 11 2 Engine compartment wire harness
A/C compressor clutch relay 6 4
A/C condenser fan relay 3 4
B 16 5 Engine compartment wire harness

Blower motor relay 8 4
C 12 12 Engine compartment wire harness

D 15 14 Engine compartment wire harness

E 14 7 Engine compartment wire harness

Electrical load detector (ELD) 13 3
Horn relay 4 4
Headlight relay(1) 10 4
Headlight relay 1(2) 9 4
Headlight relay 2(2) 10 4
Radiator fan relay 5 4
Rear window defogger relay 7 4
T101 (Battery) 2   Starter subharness (see STARTER SUBHARNESS )
T102 (Alternator) 1   Starter subharness (see STARTER SUBHARNESS )
(1) '07-08 except SC models, and '09-10 model
(2) '07-08 SC models

Under-Dash Fuse/Relay Box

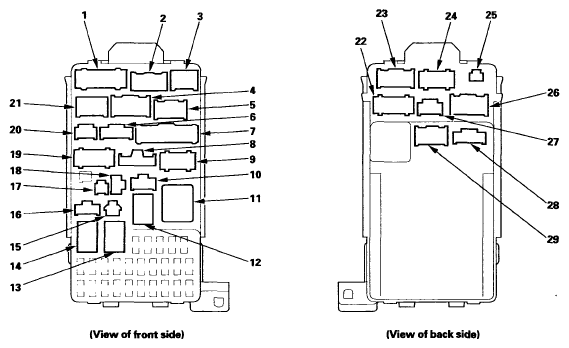

Fig 2: Identifying Under-Dash Fuse/Relay Box
G06266402Courtesy of AMERICAN HONDA MOTOR CO., INC.
UNDER-DASH FUSE/RELAY BOX CONNECTOR TERMINAL REFERENCE

Socket Ref Terminal Connects to
A 2 5 Dashboard wire harness B

B 3 6 Dashboard wire harness B

C 1 14 Dashboard wire harness B

D 4 12 ECM/PCM wire harness (see ECM/PCM WIRE HARNESS )
E 5 13 ECM/PCM wire harness (see ECM/PCM WIRE HARNESS )
F 19 12 Dashboard wire harness A
G 9 10 ECM/PCM wire harness (see ECM/PCM WIRE HARNESS )
H 8 3 ECM/PCM wire harness (see ECM/PCM WIRE HARNESS )
I 20 5
J 21 8 Dashboard wire harness B
K 23 17 Dashboard wire harness A

L 24 10 Dashboard wire harness A
M 22 12 Dashboard wire harness A

N 27 6 Dashboard wire harness A

O 26 12 Dashboard wire harness A
P 7 18 ECM/PCM wire harness (see ECM/PCM WIRE HARNESS )
Power window relay 12 4
Q 6 8 ECM/PCM wire harness (see ECM/PCM WIRE HARNESS )
R 10 6 ECM/PCM wire harness (see ECM/PCM WIRE HARNESS )
S 25 2 Dashboard wire harness B
Starter cut relay 14 4
T 18 3 Multiplex control unit service check connector
Taillight relay 13 4
Turn signal/hazard relay 11 3
U 15 1 Optional connector
V 16 4 Optional connector
W (Memory erase signal (MES) connector) 17 2 ECM/PCM wire harness (see ECM/PCM WIRE HARNESS )
X (plugs directly into the multiplex control unit) 28 8 Dashboard wire harness B
Y (plugs directly into the multiplex control unit) 29 13 Dashboard wire harness A
