Spark Plug Inspection

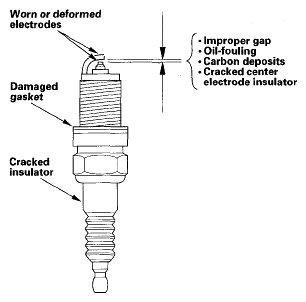

- Remove the spark plugs, and inspect the electrodes and the ceramic insulator.
- Burned or worn electrodes may be caused by these conditions:
- Advanced ignition timing
- Loose spark plug
- Plug heat range too hot
- Insufficient cooling
- Fouled plugs may be caused by these conditions:
- Retarded ignition timing
- Oil in combustion chamber
- Incorrect spark plug gap
- Plug heat range too cold
- Excessive idling/low speed running
- Clogged air cleaner element
- Deteriorated ignition coils
- Burned or worn electrodes may be caused by these conditions:
- If the spark plug electrode is dirty or contaminated, clean the electrode with a plug cleaner.NOTE:
- Do not use a wire brush or scrape the iridium electrode since this will damage the electrode.
- When using a sand blaster spark plug cleaner, do not clean for more than 20 seconds to avoid damaging the electrode.
- Do not adjust the gap (A) of iridium tip plugs, replace the spark plug if the gap is out of specification.
Electrode Gap
Standard (New): 1.0-1.1 mm (0.039-0.043 in.)
- Replace the plug at the specified interval or if the center electrode is rounded (A). Use only the spark plugs listed.
Spark Plugs IZFR6K11 (NGK)
- Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder head, finger-tight. Torque them to 18 N-m (1.8 kgf.m, 13 lbf.ft).
