Ignition Switch Test
SRS components are located in this area. Review the SRS COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES , before performing repairs or service.
- Do the battery terminal disconnection procedure (see .
- Remove the steering column upper and lower covers (see ).

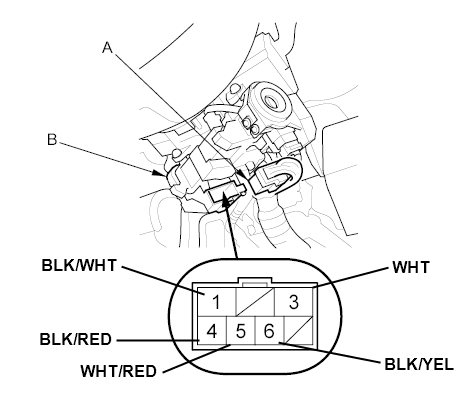

- Disconnect the 7P connector (A) from the ignition switch (B).
- Check for continuity between the terminals in each switch position according to the table below.
- If the continuity checks do not agree with the table below, replace the steering lock (ignition) switch (see STEERING LOCK REPLACEMENT ).
- After reconnecting the battery, enter the anti-theft codes for the audio system, then set the clock.
