2007 Honda Element LX, 2.4 YH1, AutomaticFACTORY OEM SERVICE PROCEDURE

XM Receiver Connector Inputs and Outputs (With XM)

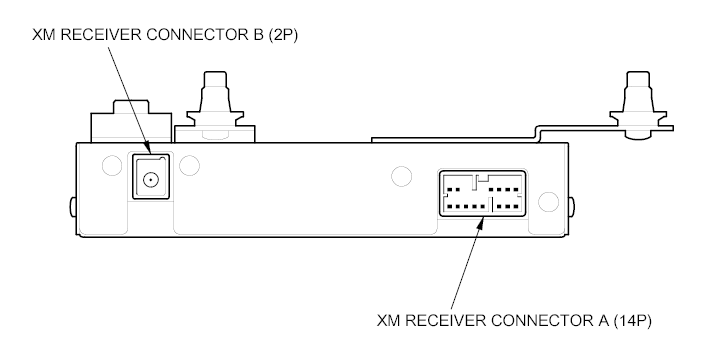

Fig 1: Identifying XM Receiver Connector Inputs & Outputs (With XM)
G00487472Courtesy of AMERICAN HONDA MOTOR CO., INC.

XM RECEIVER CONNECTOR A (14P) (WITH NAVIGATION)

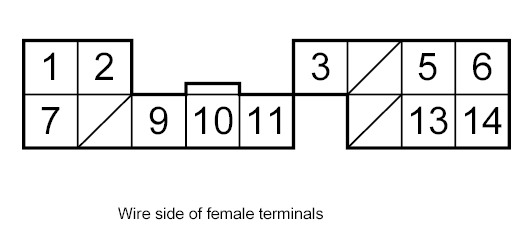

Fig 2: Identifying XM Receiver Connector A (14P) (With Navigation)
G00487473Courtesy of AMERICAN HONDA MOTOR CO., INC.
CONNECTOR REFERENCE TABLE

Cavity Wire Color Terminal Name Connects to
A1 WHT/RED +B No. 9 (10 A) fuse in the under-hood fuse/relay box
A2 ORN SYS ACC Audio-navigation unit, USB adapter control unit
A3 BRN(1) GA-NET BUS SH Shield for terminals No. 9 and No. 10
A5 WHT AUDIO R + Audio-navigation unit, USB adapter control unit
A6 RED AUDIO L + Audio-navigation unit, USB adapter control unit
A7 WHT/RED +B SUB No. 9 (10 A) fuse in the under-hood fuse/relay box
A9 BLU GA-NET BUS + Audio-navigation unit, USB adapter control unit
A10 PNK GA-NET BUS - Audio-navigation unit, USB adapter control unit
A11 BLK GND Ground (G551)
A13 BLK AUDIO R - Audio-navigation unit, USB adapter control unit
A14 GRN AUDIO L - Audio-navigation unit, USB adapter control unit
(1) The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

XM RECEIVER CONNECTOR A (14P) (WITHOUT NAVIGATION)

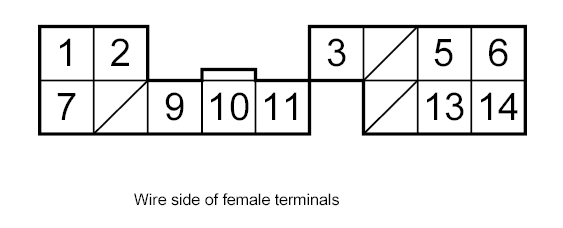

Fig 3: Identifying XM Receiver Connector A (14P) (Without Navigation)
G00487474Courtesy of AMERICAN HONDA MOTOR CO., INC.
CONNECTOR REFERENCE TABLE

Cavity Wire Color Terminal Name Connects to
A1 WHT/RED +B No. 9 (10A) fuse in the under-hood fuse/relay box
A2 ORN SYS ACC Audio unit
A3 BRN() GA-NET BUS SH Shield for terminals No. 9 and No. 10
A5 WHT AUDIO R+ Audio unit
A6 RED AUDIO L+ Audio unit
A7 WHT/RED +B SUB No. 9 (10A) fuse in the under-hood fuse/relay box
A9 BLU GA-NET BUS + Audio unit
A10 PNK GA-NET BUS - Audio unit
A11 BLK GND Body Ground to G551
A13 BLK AUDIO R- Audio unit
A14 GRN AUDIO L- Audio unit
(1) The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

XM RECEIVER CONNECTOR B (2P)

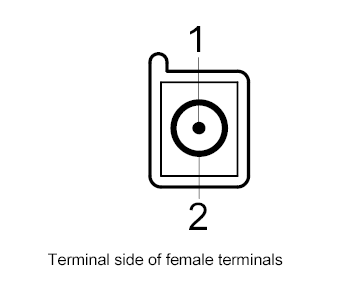

Fig 4: Identifying XM Receiver Connector B (2P)
G00487475Courtesy of AMERICAN HONDA MOTOR CO., INC.
CONNECTOR REFERENCE TABLE

Cavity Wire Color Terminal Name Connects to
B1 -- SAT/TER XM antenna
B2 -- GND SH Shield for terminal No. 1
