2006 Honda S2000 L4-2.2LFACTORY OEM SERVICE PROCEDURE
Alignment
Caster angle 6° 00' ± 15'
Maximum difference between the right and left side 0° 15'
Front camber angle -0° 30' ± 10'
Maximum difference between the right and left side 0° 10'
Rear camber angle -1° 30' ± 10'
Front toe-in 0 ± 2 mm (0 ± 0.08 inch)
Rear toe-in:
'00-03 models 6.0 ± 2 mm (0.25 ± 0.08 inch)
'04-06models 3.7 ± 2 mm (0.14 ± 0.08 inch)

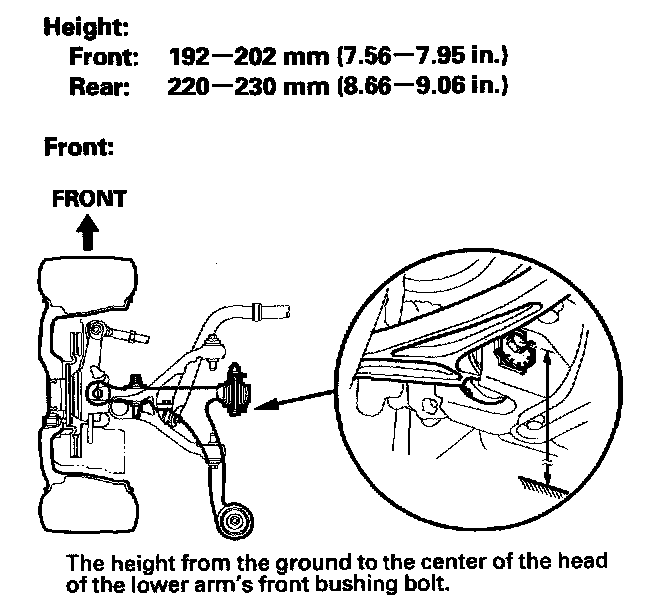

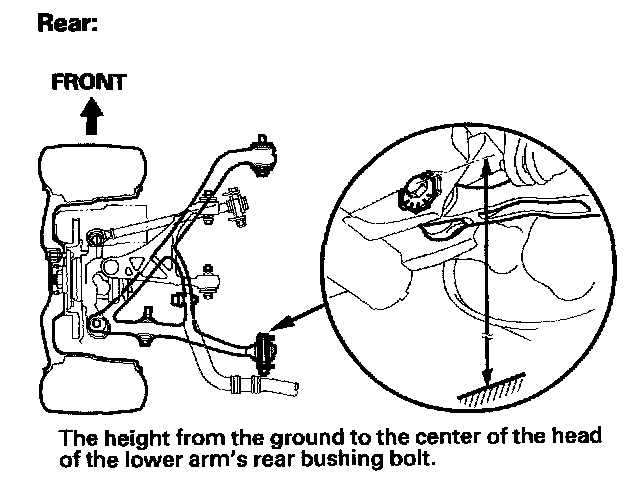

Ride height

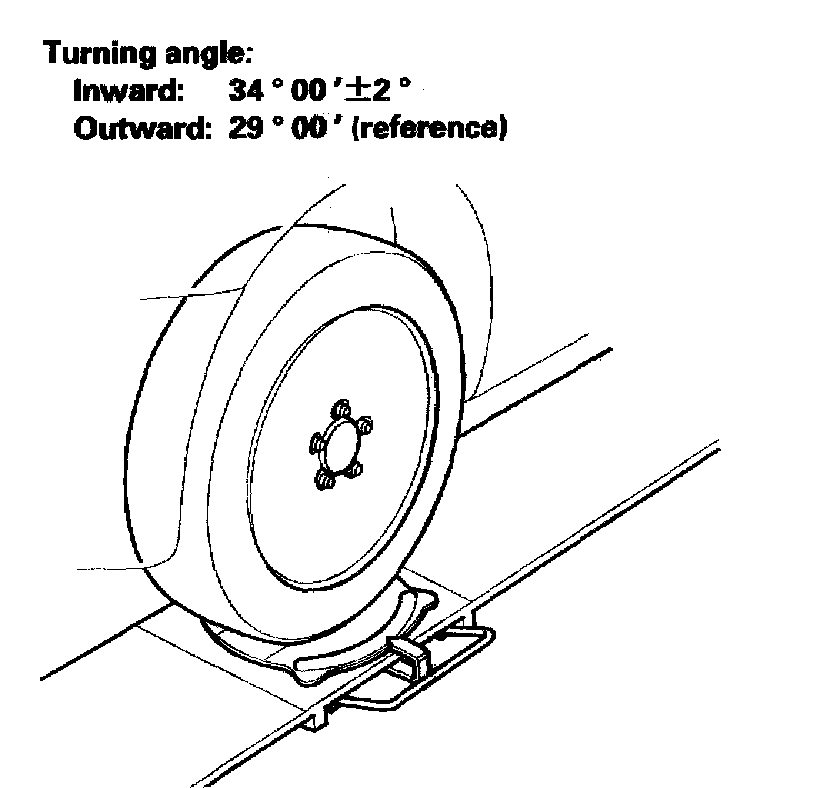

Turning Angle
Maximum difference between the right and left side 0° 15'
Front camber angle -0° 30' ± 10'
Maximum difference between the right and left side 0° 10'
Rear camber angle -1° 30' ± 10'
Front toe-in 0 ± 2 mm (0 ± 0.08 inch)
Rear toe-in:
'00-03 models 6.0 ± 2 mm (0.25 ± 0.08 inch)
'04-06models 3.7 ± 2 mm (0.14 ± 0.08 inch)
Ride height
Turning Angle
