2006 Honda S2000 L4-2.2LFACTORY OEM SERVICE PROCEDURE
Engine Controls - MIL ON/DTC P0600 Stored
07-046
October 11, 2011
Applies To:
2006 S2000 - ALL
2007 S2000 - From VIN JHMAP2...78000001 thru JHMAP2...78003235
MIL Comes On With DTC P0600
(Supersedes 07-046, dated July 21, 2011, to revise the information marked by asterisks)
REVISION SUMMARY
*Under WARRANTY CLAIM INFORMATION, the flat rate time was changed.*
SYMPTOM
The MIL comes on with DTC P0600 (serial communication link malfunction).
PROBABLE CAUSE
When the ignition switch is on for about 4 or more hours (engine running or not), the ECM can misinterpret the serial communication signal and set DTC P0600.
CORRECTIVE ACTION
Update the PGM-FI software with the HDS.
WARRANTY CLAIM INFORMATION
The normal warranty applies.
Operation Number: 125517
*Flat Rate Time: 0.3*
Failed Part: P/N 37820-PZX-A12
Defect Code: 03214
Symptom Code: 03203
Skill Level: Repair Techincian

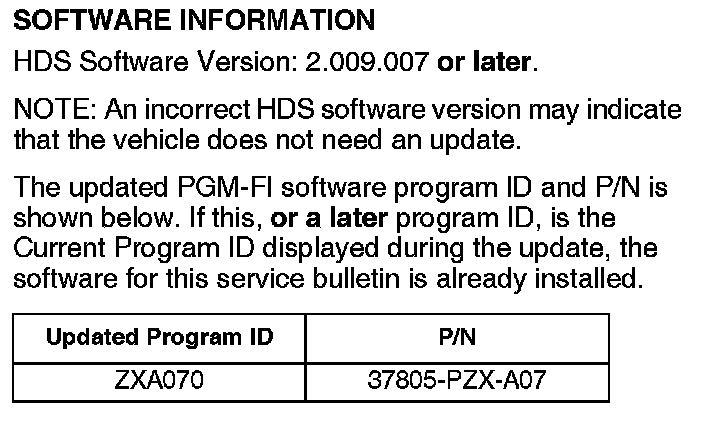

SOFTWARE INFORMATION
REPAIR PROCEDURE
Update the PGM-FI software with the HDS and software version 2.009.007 or later. Refer to Service Bulletin 01-023, Updating Control Units/Modules.
