2006 Honda Insight StandardFACTORY OEM SERVICE PROCEDURE

Driving Pattern

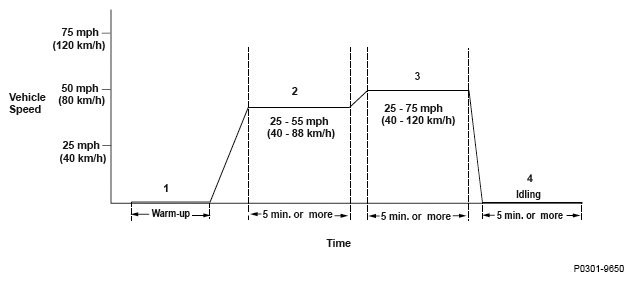

Fig 1: Identifying Driving Pattern
G04817758
  1. Start the engine. Hold the engine at 3,000 rpm with no load (in park or neutral) until the radiator fan comes on.
  2. Drive the vehicle at a speed between 25 - 55 mph (40 - 88 km/h) for at least 5 minutes.
  3. To test while driving, drive at a steady speed between 25 - 75 mph (40 - 120 km/h) for at least 5 minutes.
  4. To test at idle, stop the vehicle after step  2, and let the engine idle for at least 5 minutes.
  • When freeze frame data is stored, drive the vehicle under those conditions instead of Driving Patterns 3 or 4.
  • If you have difficulty duplicating the DTC, retest after turning off electrical components such as the audio system and A/C, and try a different gear position.
  • Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
