2006 Honda Element LX, 2.4 YH2, StandardFACTORY OEM SERVICE PROCEDURE
CMP Sensor B Replacement
- Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
- Remove the EVAP canister purge valve (see EVAP CANISTER PURGE VALVE REPLACEMENT ).

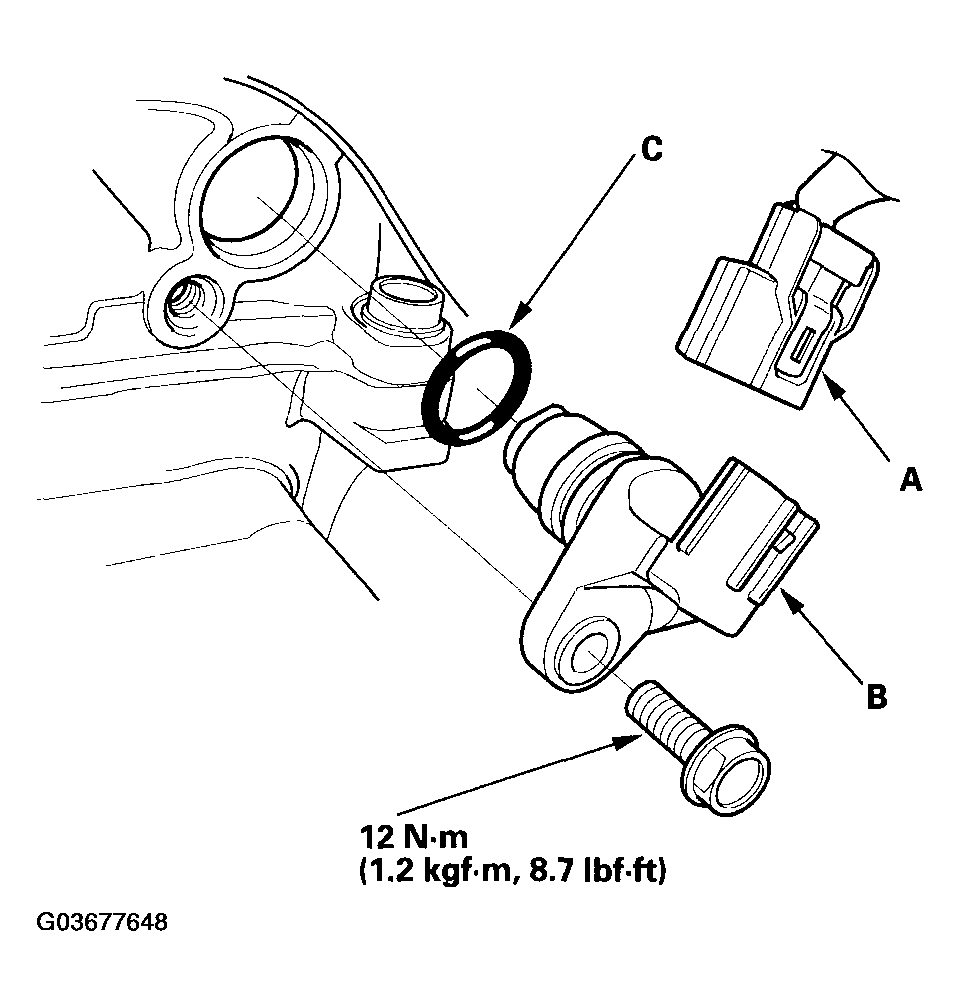

- Disconnect the CMP sensor B connector (A).
- Remove CMP sensor B (B).
- Install the sensor in the reverse order of removal with a new O-ring (C).
- Do the CKP pattern clear/CKP pattern learn procedure (see CRANK (CKP) PATTERN CLEAR/CRANK (CKP) PATTERN ).
