2006 Honda Element LX, 2.4 YH2, StandardFACTORY OEM SERVICE PROCEDURE

Tailgate Latch Replacement

NOTE:
  • Take care not to scratch the tailgate.
  • Put on gloves to protect your hands.
  • The left side is shown; the right side is similar.
  1. Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Remove the tailgate latch (A).
    • 1 Disconnect the tailgate opener rod (B) from the tailgate handle (C).
    • 2 Disconnect the latch switch connector (D), and detach it.
    • 3 Remove the screws securing the latch.
    • 4 Remove the latch through the hole in the tailgate. Take care not to bend the tailgate opener rod.

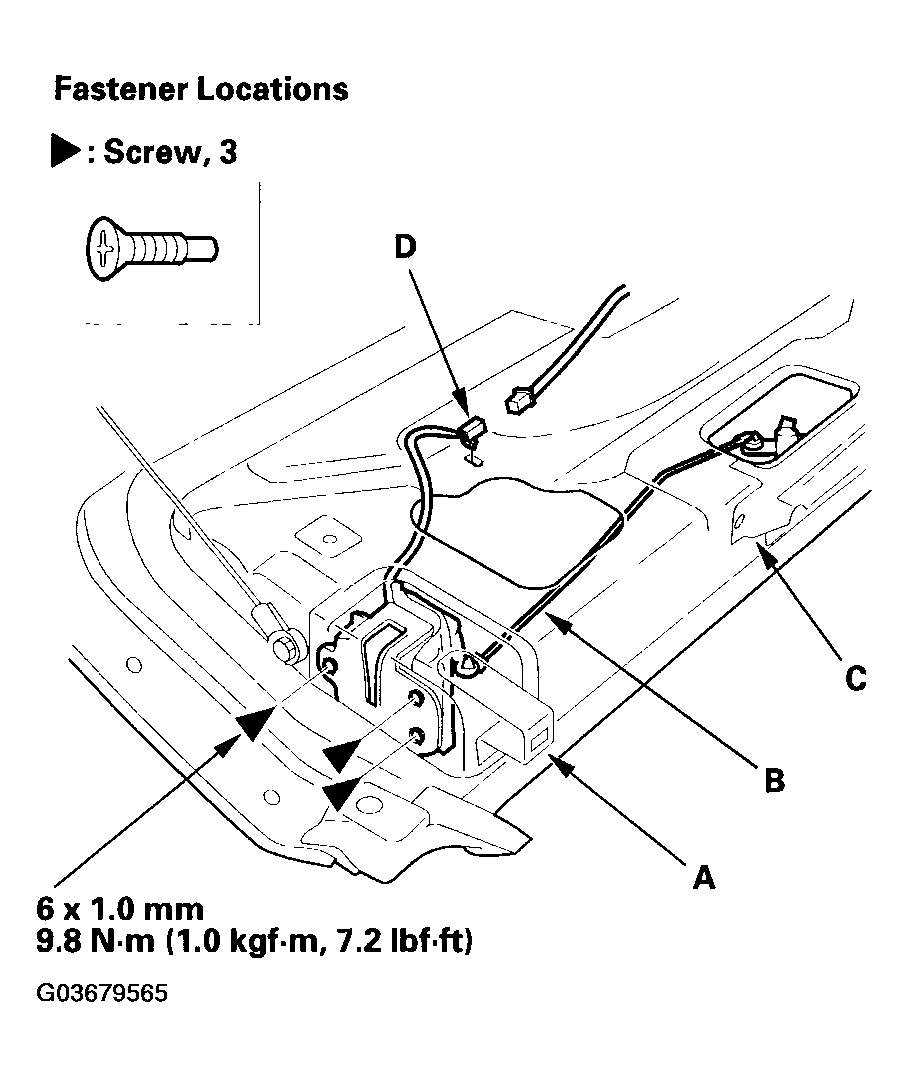

    Fig 1: Removing Tailgate Latch And Torque Specifications
    G03679565Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the latch in the reverse order of removal, and note these items:
    • Make sure the latch switch connector is plugged in properly, and opener rod is connected securely.
    • Make sure the opener rod actuates the latch before you close the tailgate.
    • Make sure the tailgate locks and opens properly.
