Drive Belt Replacement
Special Tools Required
Belt tension release tool Snap-on YA9317 or equivalent, commercially available
- Remove the splash shield (see step 24 on ENGINE REMOVAL ).

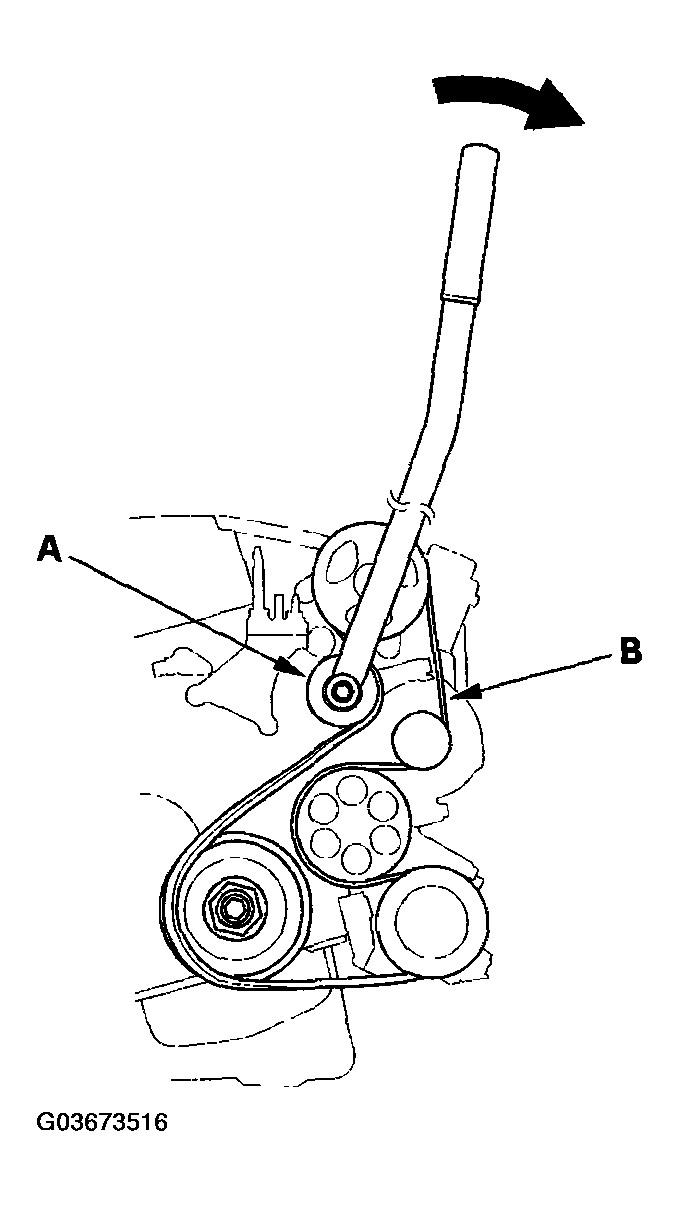

- Move the auto-tensioner (A) with the tension release tool to relieve tension from the drive belt (B), and remove the drive belt.
- Install the new belt in the reverse order of removal.NOTE: For belt routing, see the COMPONENT LOCATION INDEX & DRIVE BELT ROUTING
