2006 Honda CR-V EX, 2.4 RD6FACTORY OEM SERVICE PROCEDURE
MAP Sensor Replacement

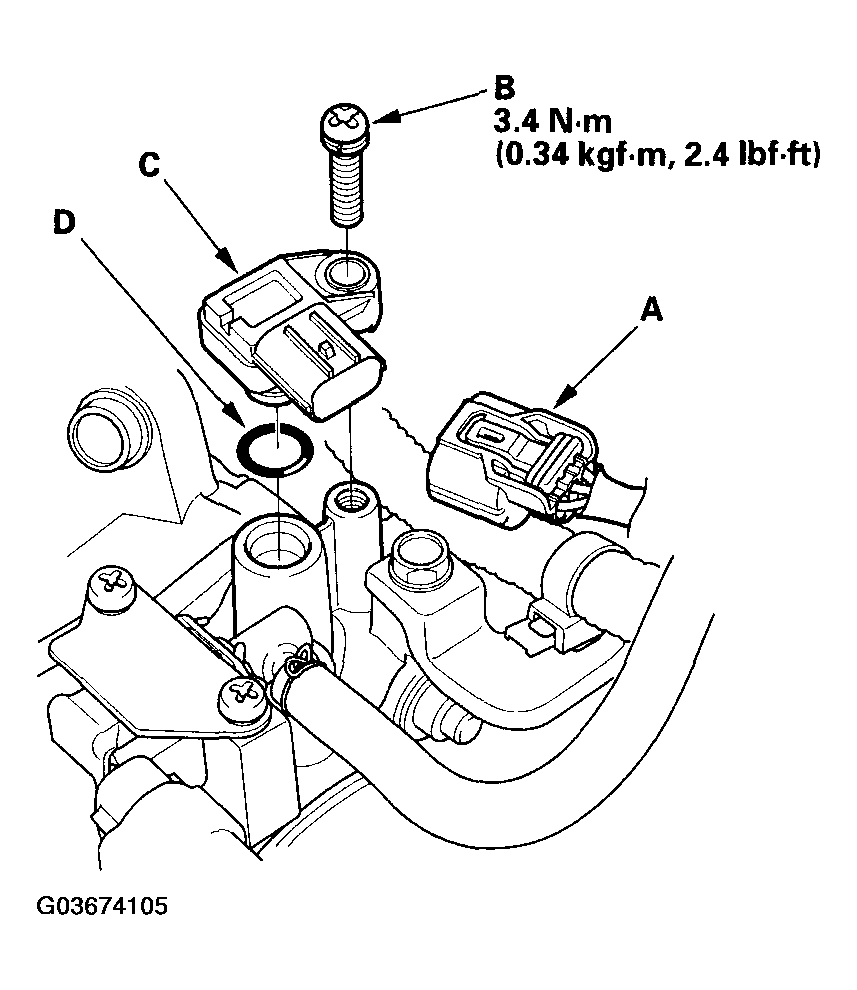

- Remove the intake monifold cover (see step 1 on REMOVAL ).
- Disconnect the MAP sensor 3P connector (A).
- Remove the screw (B).
- Remove the MAP sensor (C).
- Install the sensor in the reverse order of removal with a new O-ring (D).
