Piston, Pin, and Connecting Rod Replacement: Inspection

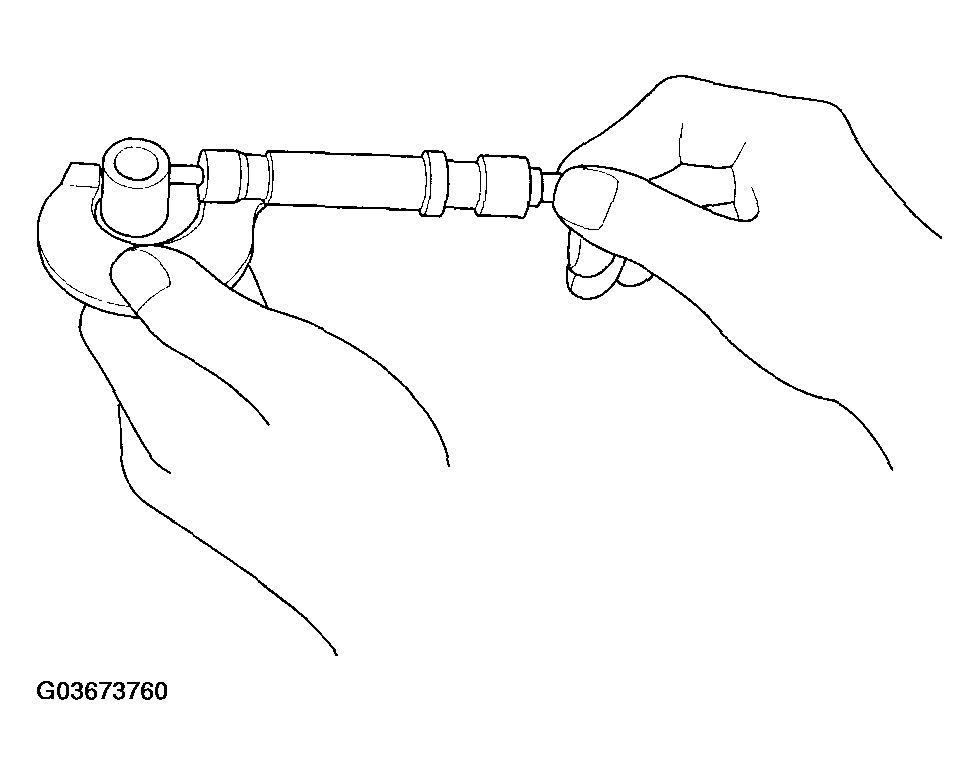

- Measure the diameter of the piston pin.
Piston Pin Diameter
Standard (New): 21.961-21.965 mm (0.8646-0.8648 in.)
Service Limit: 21.953 mm (0.8643 in.)

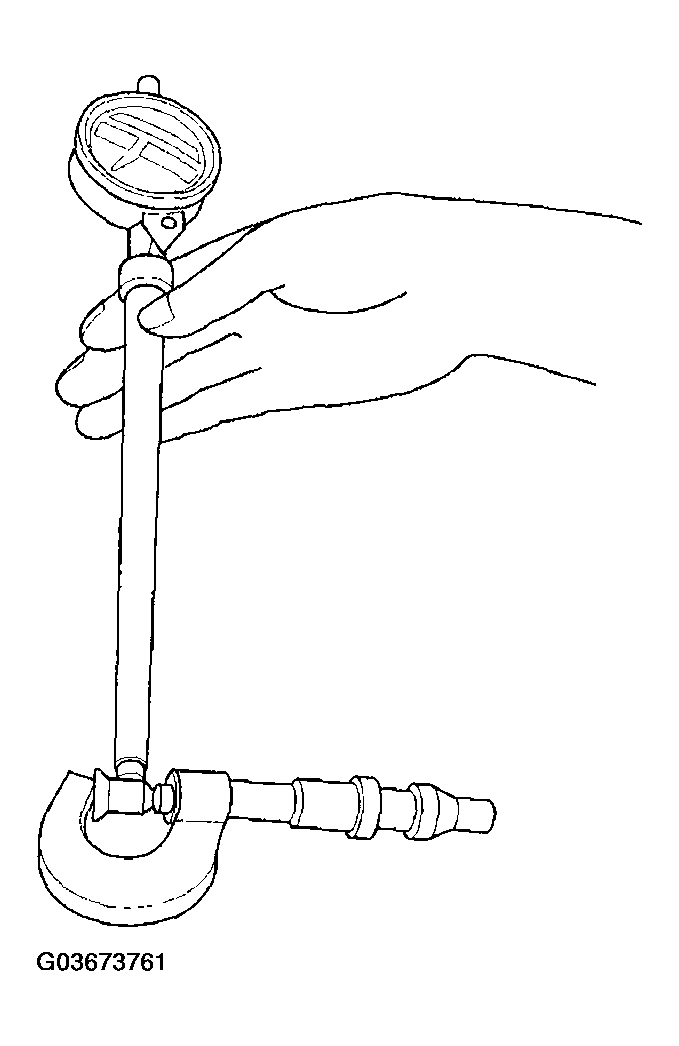

- Zero the dial indicator to the piston pin diameter.

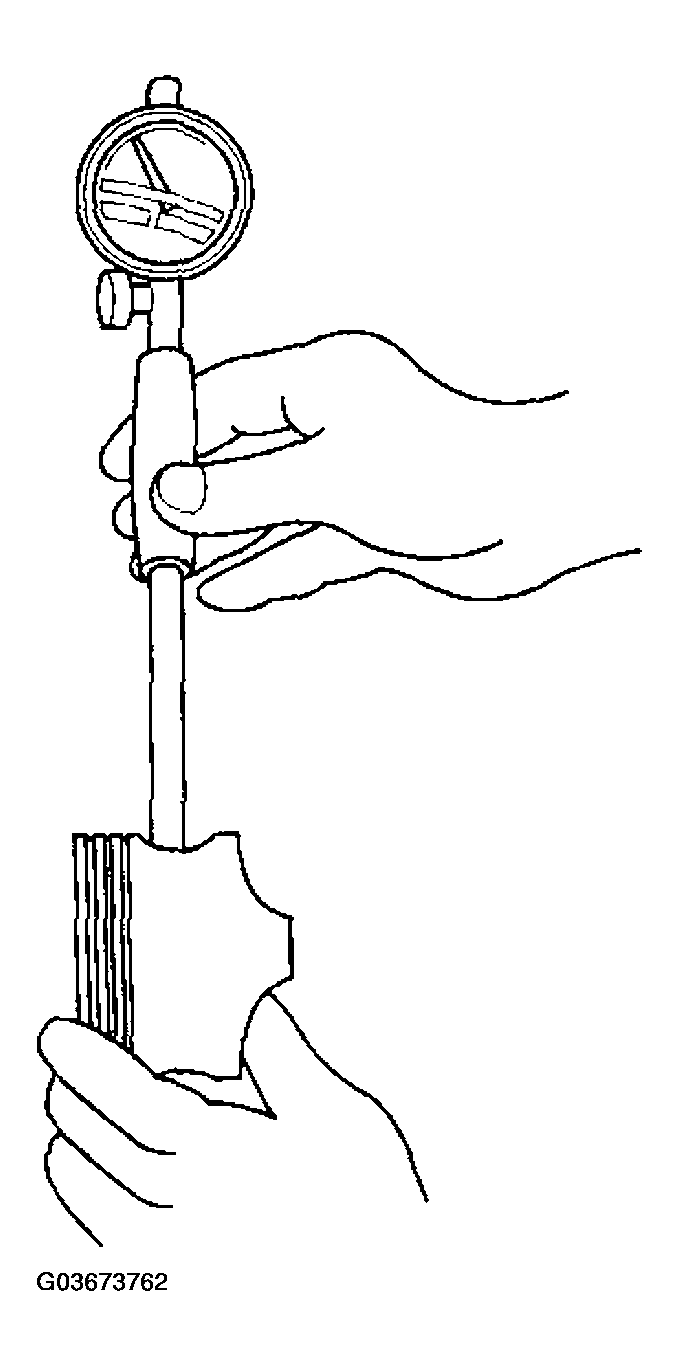

- Check the difference between the piston pin diameter and piston pin hole diameter in the piston.
Piston Pin-to-Piston Clearance
Standard (New): -0.005 to +0.002 mm (-0.00020 to +0.00008 in.)
Service Limit: 0.005 mm (0.0002 in.)

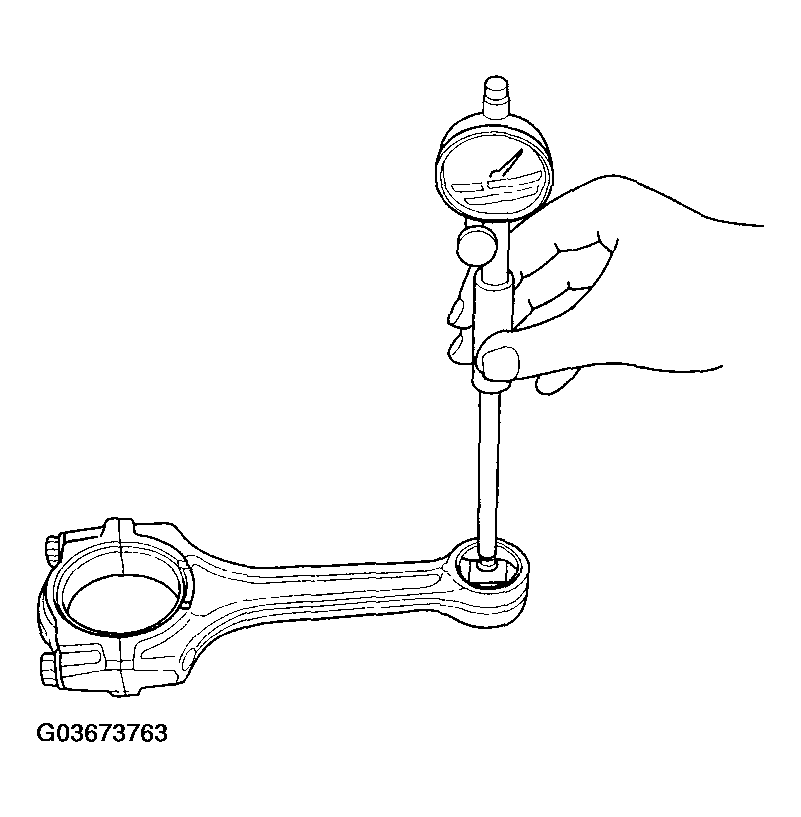

- Measure the piston pin-to-connecting rod clearance.
Piston Pin-to-Connecting Rod Clearance
Standard (New): 0.005-0.015 mm (0.0002-0.0006 in.)
Service Limit: 0.02 mm (0.0008 in.)
