2006 Honda CR-V EX, 2.4 RD6FACTORY OEM SERVICE PROCEDURE
Fuel Pressure Regulator Replacement

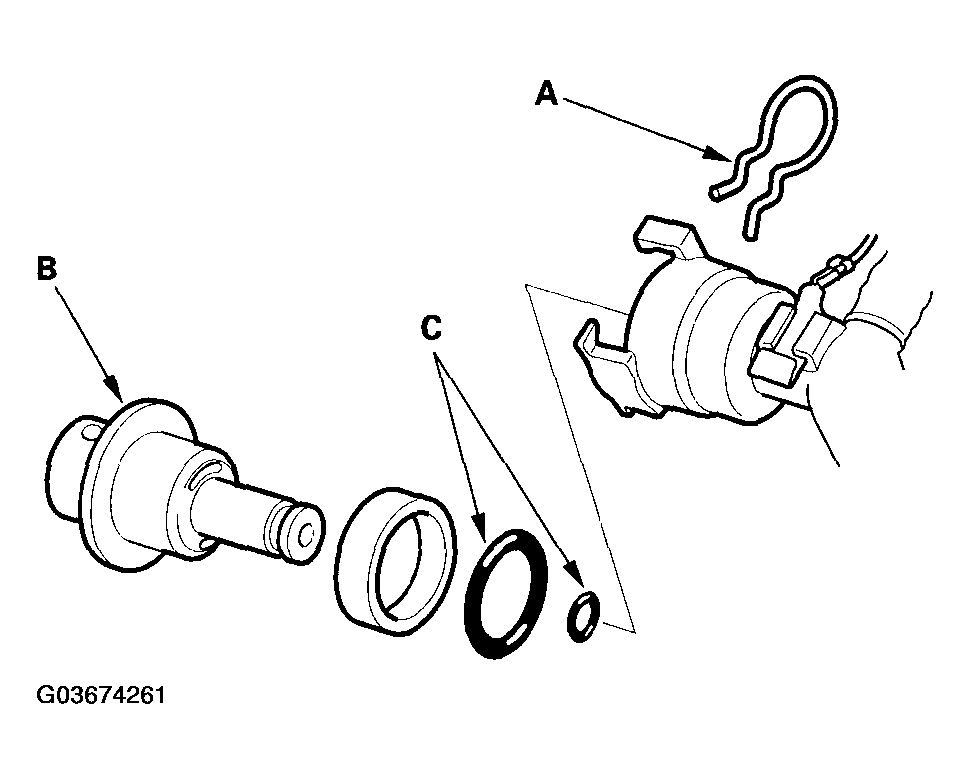

- Remove the fuel tank unit (see FUEL TANK REPLACEMENT ).
- Remove the clip (A).
- Remove the fuel pressure regulator (B).
- Install the part in the reverse order of removal with new O-rings (C).NOTE: Coat the O-rings with clean engine oil. Do not pinch the O-rings during installation. Never apply brake fluid, vegetable oil, or alcohol-based oil to the O-rings.
