2006 Honda CR-V EX, 2.4 RD6FACTORY OEM SERVICE PROCEDURE
VSA Modulator-Control Unit Removal and Installation: Removal

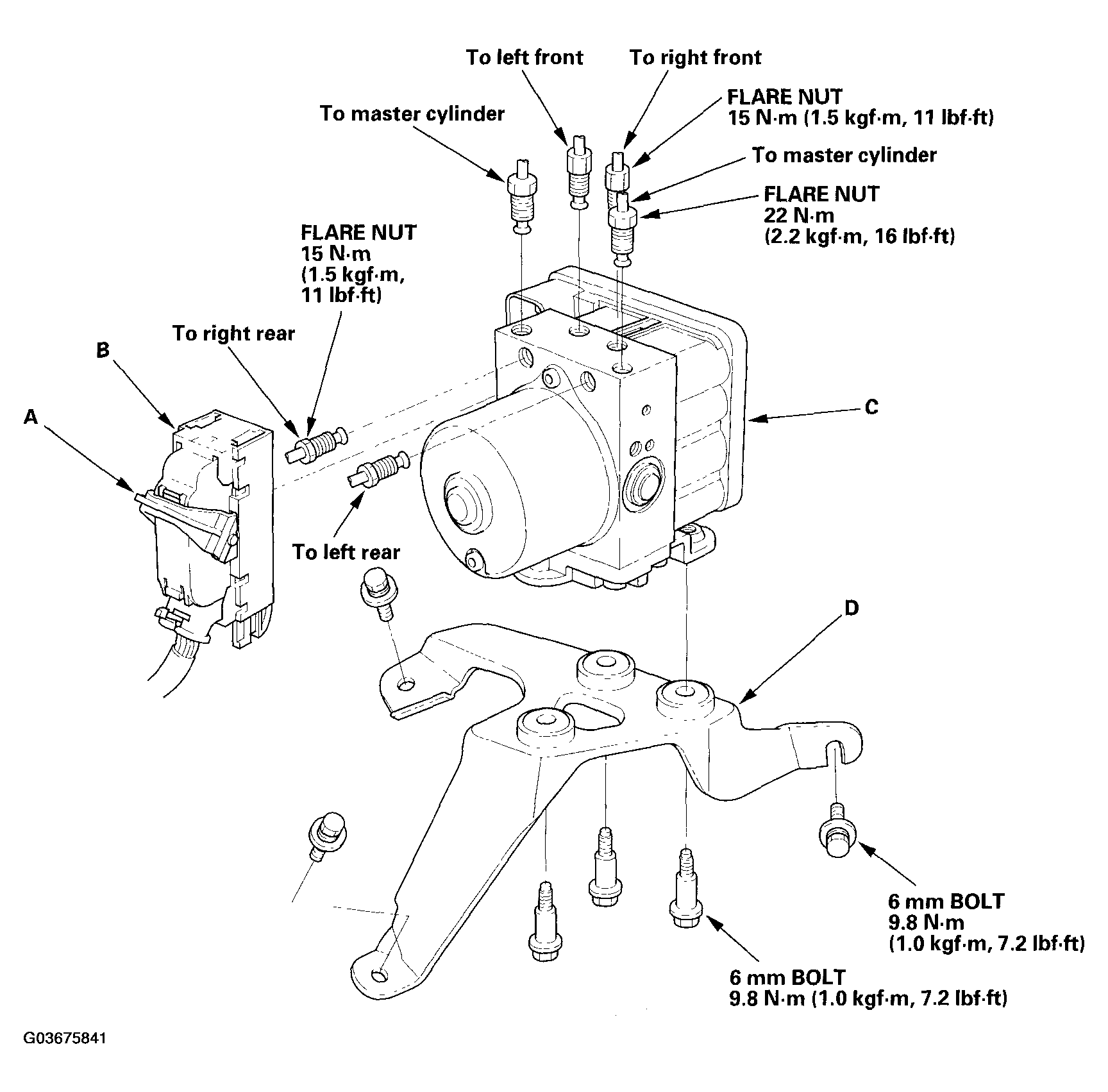

- Pull up the lock (A) of the VSA modulator-control unit 47P connector (B), and the connector disconnects itself.
- Disconnect the six brake lines.
- Remove the three 6 mm bolts, then remove the VSA modulator-control unit (C)/bracket (D) from the body.
- Remove the three 6 mm bolts, then remove the VSA modulator-control unit from the bracket.
