SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or service.

Make sure you have the anti-theft codes for the radio and the navigation system, then write down the frequencies for the radio's preset buttons.
Disconnect the battery negative cable.
Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
Disconnect the 6P connector from the driver's under-dash fuse/relay box.

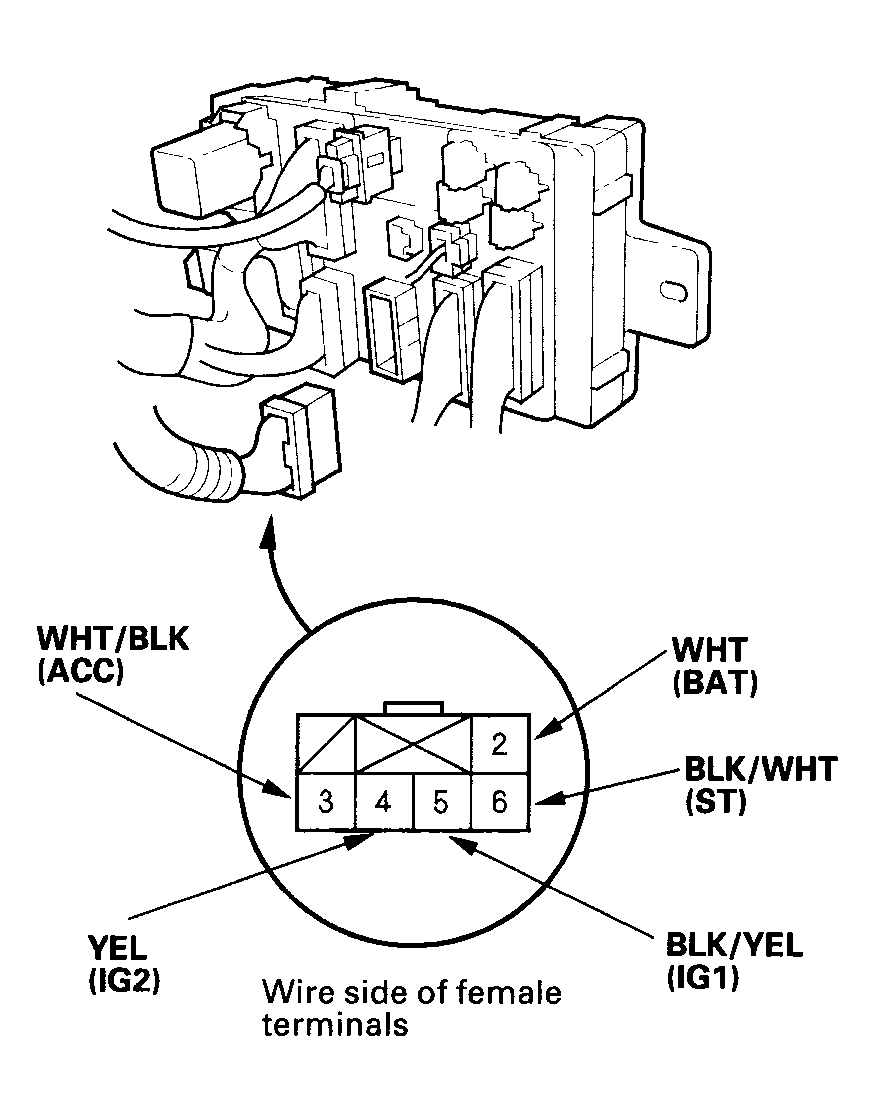

Fig 1: Disconnecting 6P Connector From Driver's Under-Dash Fuse/Relay Box
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

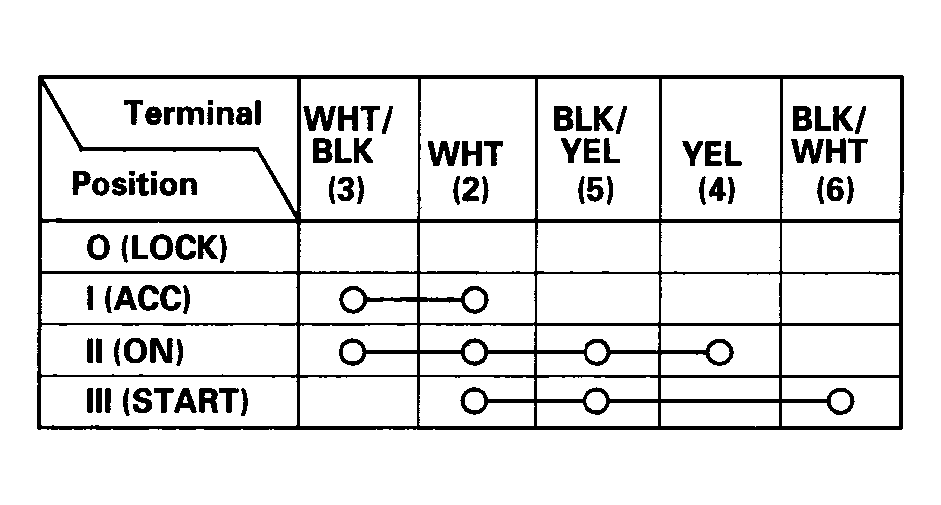

Fig 2: Ignition Switch Terminals Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity checks do not agree with the table, replace the steering lock.
After reconnecting the battery, enter the anti-theft codes for the radio and the navigation system, then enter the customer's radio station presets, and set the clock.
Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
