2005 Honda Pilot EXFACTORY OEM SERVICE PROCEDURE
Spark Plug Inspection

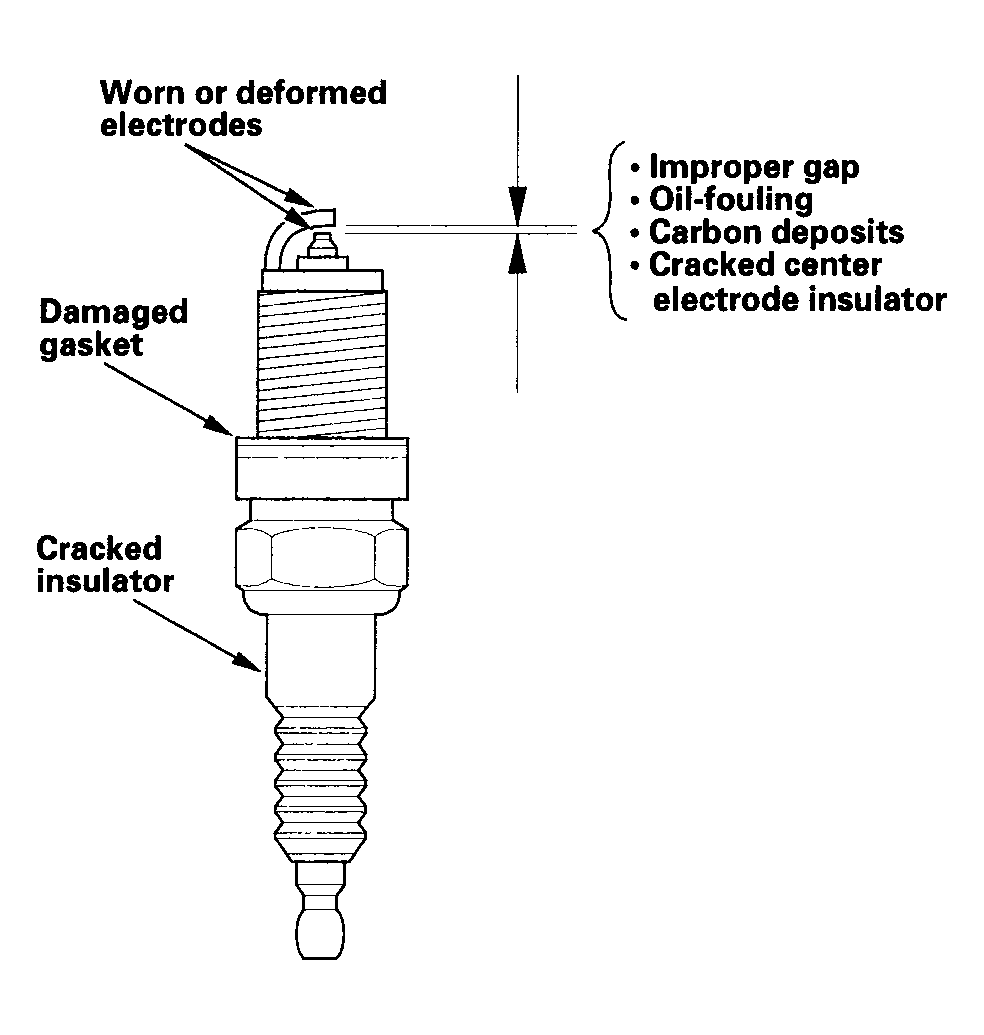

- Inspect the electrodes and ceramic insulator.
- Burned or worn electrodes may be caused by:
- Advanced ignition timing
- Loose spark plug
- Plug heat range too hot
- Insufficient cooling
- Fouled plug may be caused by:
- Retarded ignition timing
- Oil in combustion chamber
- Incorrect spark plug gap
- Plug heat range too cold
- Excessive idling/low speed running
- Clogged air cleaner element
- Deteriorated ignition coils
- Burned or worn electrodes may be caused by:

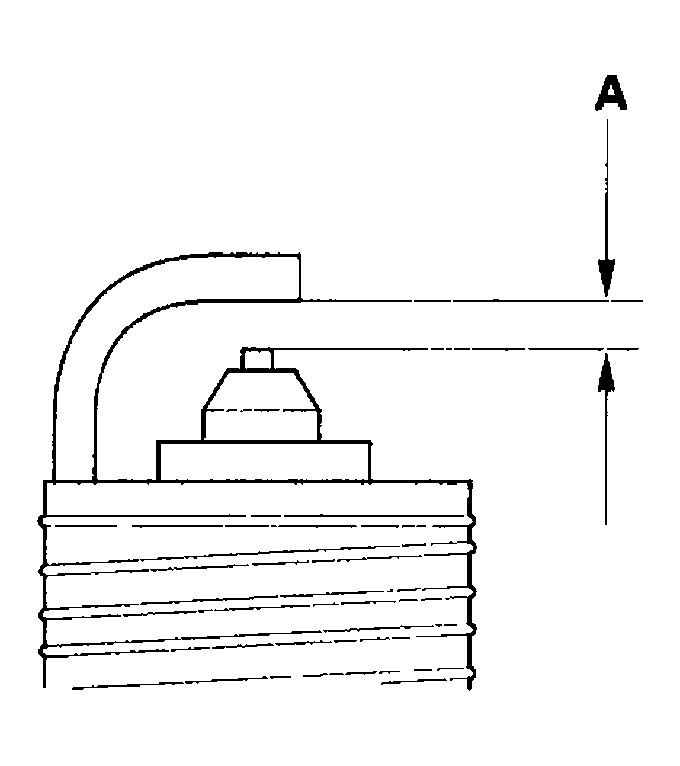

- Do not adjust the gap (A) of iridium tip plugs, replace the spark plug if the gap is out of specification.
Electrode Gap
Standard (New): 1.0-1.1 mm (0.039-0.043 in.)

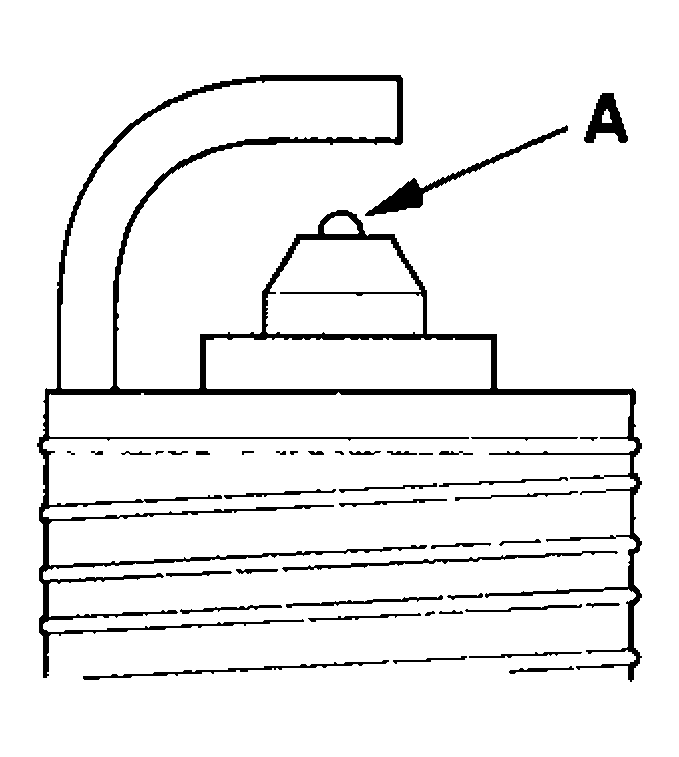

- Replace the plug at the specified interval or if the center electrode is rounded (A). Use only the spark plugs listed below.
Spark Plugs
NGK: IZFR5K-11
DENSO: SKJ16DR-M11
- Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder head, finger-tight. Then torque them to 18 N.m (1.8 kgf.m, 13 lbf.ft).
