2004 Honda S2000FACTORY OEM SERVICE PROCEDURE
Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|
| C51 (Gray, 2 Pin) | Under left side of dash. See Figure . |
| C101 (Light Blue, 16 Pin) | Behind left kick panel. See Figure . |
| C201 (Light Blue, 16 Pin) | Under right side of dash. See Figure . |

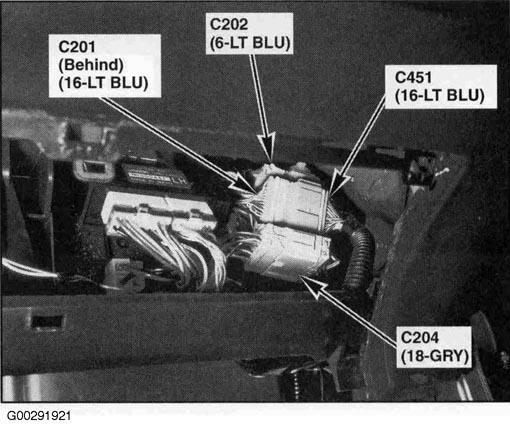

| C202 (Light Blue, 6 Pin) | Under right side of dash. See Figure . |
| C203 (Brown, 7 Pin) | Under right side of dash. See Figure . |
| C204 (Gray, 18 Pin) | Under right side of dash. See Figure . |
| C301 (Gray, 14 Pin) | Under left side of dash. See Figure . |
| C302 (Light Blue, 16 Pin) | Under left side of dash. See Figure . |
| C303 (Gray, 14 Pin) | At left side of steering column. See Figure . |
| C351 (Gray, 2 Pin) | At left rear of engine compartment. See Figure . |
| C401 (Gray, 22 Pin) | Behind left kick panel. See Figure . |
| C402 (Light Blue, 6 Pin) | At left side of steering column. See Figure . |
| C403 (Light Blue, 16 Pin) | At left side of steering column. See Figure . |
| C404 (Light Blue, 24 Pin) | At left side of steering column. See Figure . |
| C451 (Light Blue, 16 Pin) | Under right side of dash. See Figure . |
| C452 (Gray, 2 Pin) | Under right side of dash. See Figure . |
| C503 (Yellow, 3 Pin) | At left side of steering column. See Figure . |
| C504 (Gray, 14 Pin) | Under right side of dash. See Figure . |
| C505 (White, 6 Pin) | Behind left kick panel. See Figure . |
| C506 (Gray, 4 Pin) | At right side of steering column. See Figure . |
| C551 (Gray, 2 Pin) | Behind audio unit. See Figure . |
| C601 (Gray, 4 Pin) | Below left side of rear trim. See Figure . |
| C602 (Brown, 2 Pin) | At left side of trunk. See Figure . |
| C701 (Gray, 3 Pin) | Inside steering wheel. See Figure . |

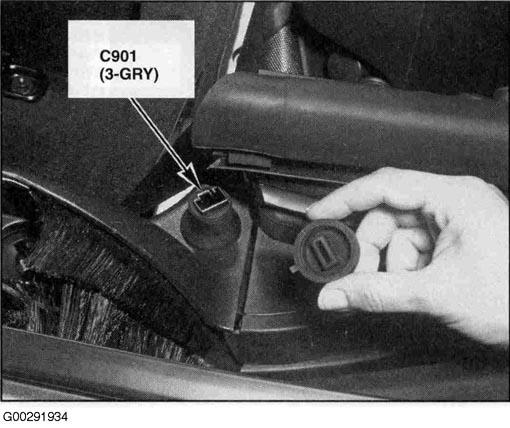

| C901 (Gray, 3 Pin) | At left side of hardtop. See Figure . |
