2004 Honda S2000 L4-2.2L
Brake Switch (Cruise Control): Testing and Inspection
2004 Honda S2000 L4-2.2LSECTION Testing and Inspection
Brake Pedal Position Switch Test

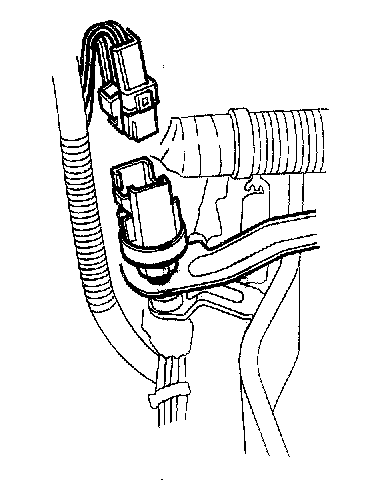

1. Disconnect the brake pedal position switch connector, and remove the switch.
2. Check for continuity between the No.1 and the No.4 terminals of the brake pedal position switch connector. There should be continuity when the button (A) is pressed.
3. Check for continuity between the No.2 and the No.3 terminals. There should be continuity when the button is released.
4. If the brake pedal position switch is faulty, replace it.
5. Install the brake pedal position switch, and adjust it.
1. Disconnect the brake pedal position switch connector, and remove the switch.
2. Check for continuity between the No.1 and the No.4 terminals of the brake pedal position switch connector. There should be continuity when the button (A) is pressed.
3. Check for continuity between the No.2 and the No.3 terminals. There should be continuity when the button is released.
4. If the brake pedal position switch is faulty, replace it.
5. Install the brake pedal position switch, and adjust it.
