2003 Honda Pilot EXFACTORY OEM SERVICE PROCEDURE
Toe-In Adjustment: Rear
- Ensure parking brake is released to avoid an incorrect measurement. Check toe-in. See WHEEL ALIGNMENT SPECIFICATIONS . If no adjustment is required, remove alignment equipment. If adjustment is required, go to next step.

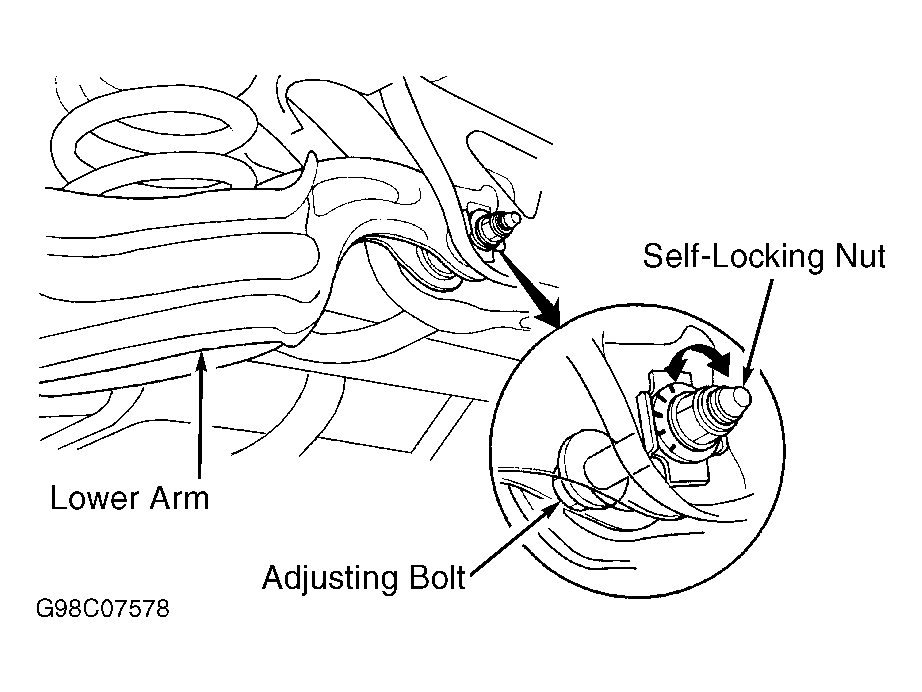

- Hold adjusting bolt on rear lower control arm and loosen lock nut. Adjust rear toe-in by turning adjusting bolt until toe-in is correct. See WHEEL ALIGNMENT SPECIFICATIONS . Install NEW lock nut, and tighten it while holding adjusting bolt. See Fig 1 and TORQUE SPECIFICATIONS . Recheck toe-in.
