2003 Honda Pilot EXFACTORY OEM SERVICE PROCEDURE

VTEC Oil Pressure Switch Replacement

Disconnect the VTEC oil pressure switch connector, then remove the VTEC oil pressure switch (A).

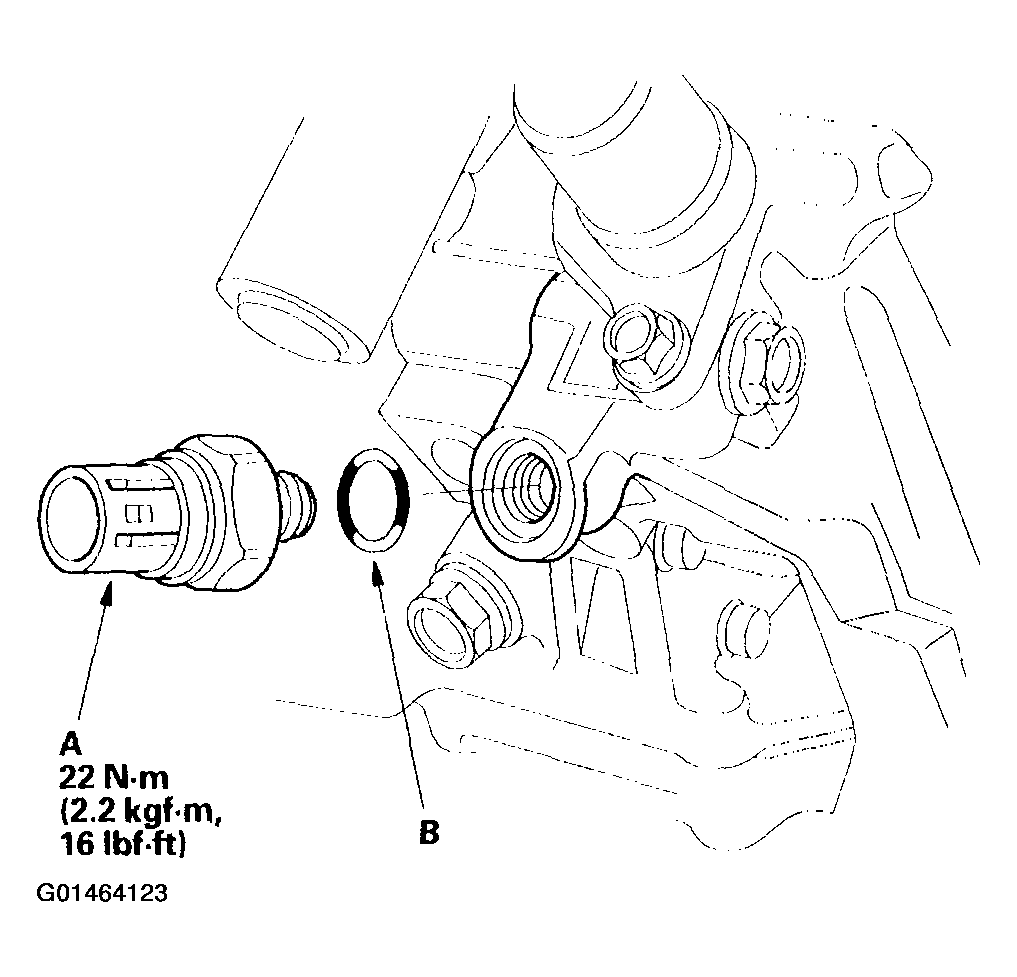

Fig 1: Removing The VTEC Oil Pressure Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the switch in the reverse order of removal with a new O-ring (B).
