2003 Honda Pilot EXFACTORY OEM SERVICE PROCEDURE
CKP Sensor Replacement
- Remove the alternator-compressor belt (see ALTERNATOR BELT ).
- Loosen the adjusting nut, locknut, and mounting bolt, then remove the power steering (P/S) pump belt (see step 6 on TIMING BELT REMOVAL ).
- Remove the dipstick and tube (see step 9 on TIMING BELT REMOVAL ).
- Remove the crankshaft pulley (see CRANKSHAFT PULLEY REMOVAL & INSTALLATION ).
- Remove the upper and lower cover (see step 11 on TIMING BELT REMOVAL ).

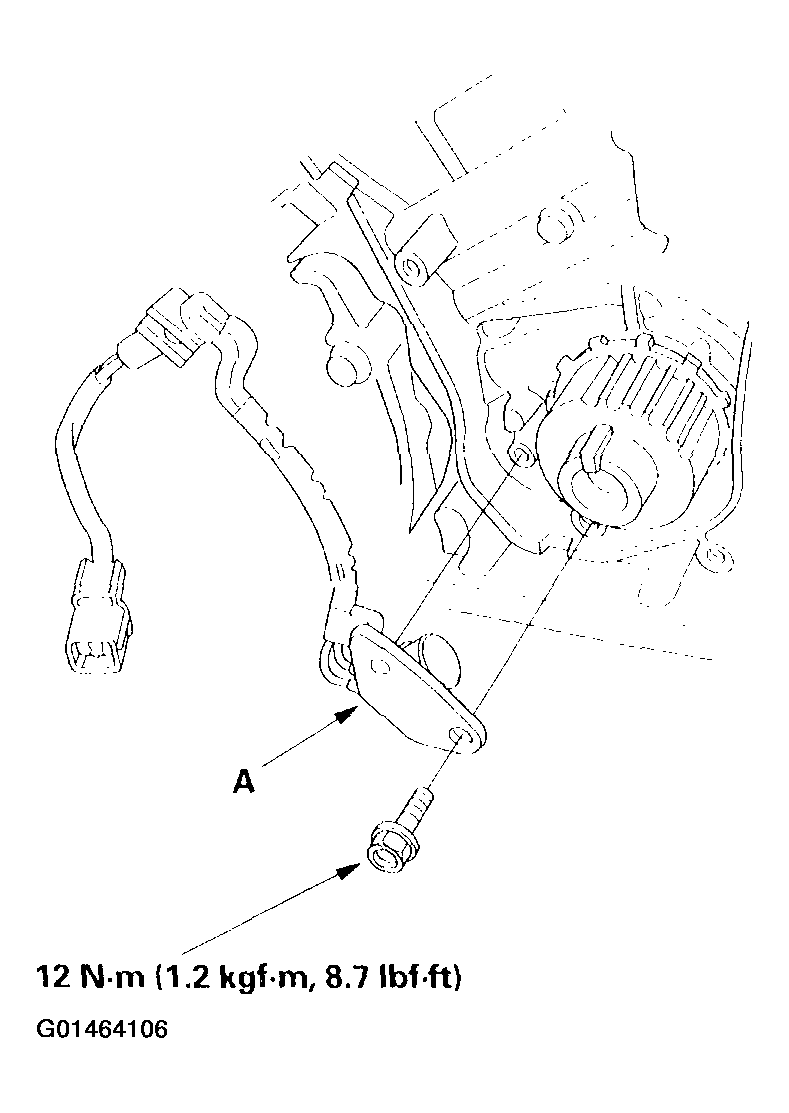

- Remove the CKP sensor (A) from the oil pump.
- Install the sensor in the reverse order of removal.
