2003 Honda Pilot EXFACTORY OEM SERVICE PROCEDURE
How To Remove The PCM For Testing

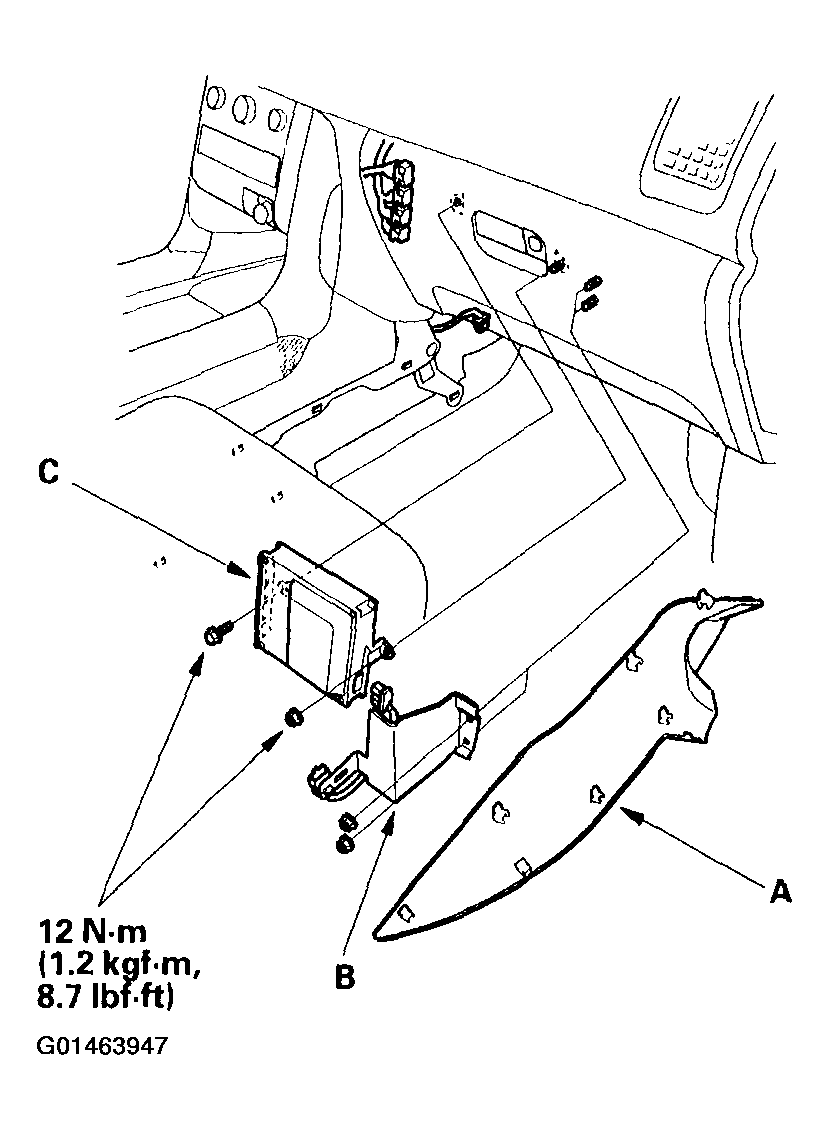

If the inspection for a trouble code requires voltage or resistance checks at the PCM connectors, remove the PCM and test it:
- Remove the passenger's center console side trim (A).
- Remove the two nuts from the bracket (B).
- Remove the bolt and the nut from the PCM (C).
