DTC P0451: FTP Sensor Range/Performance Problem
Special Tools Required Vacuum Pump/Gauge, 0-30 in.Hg A973X-041-XXXXX
- Remove the fuel fill cap.
- Turn the ignition switch ON (II).

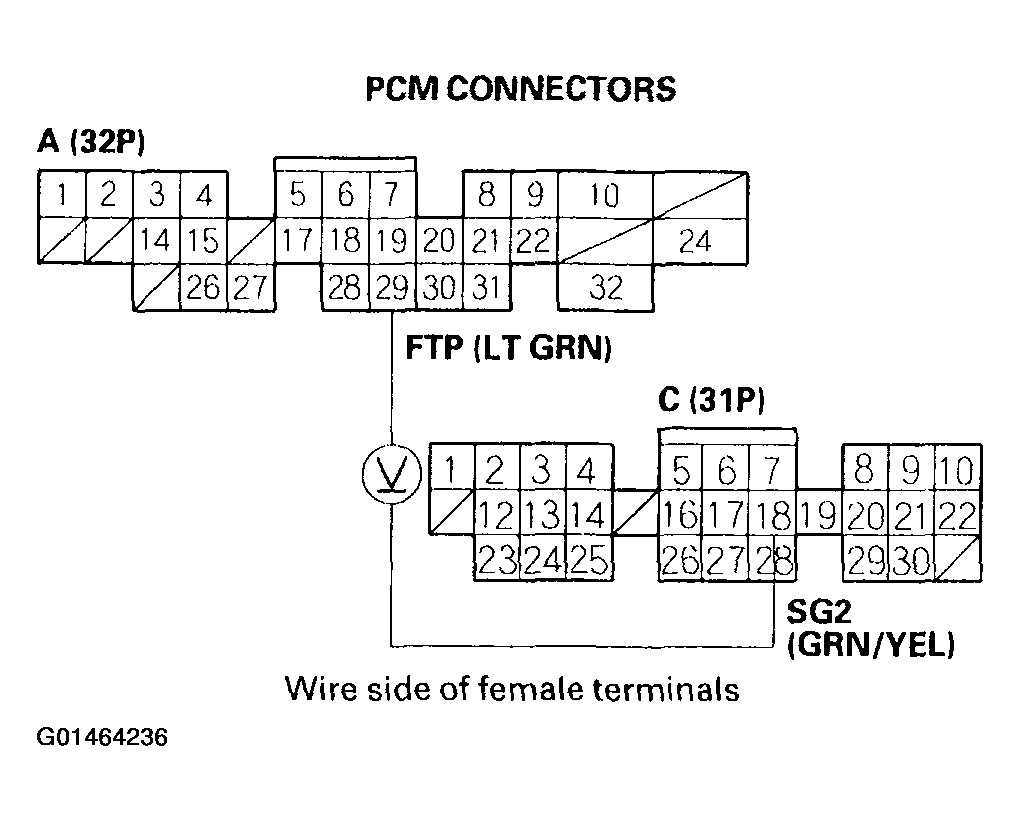

- Monitor the FTP sensor voltage with the scan tool or the HDS, or measure voltage between PCM connector terminals A29 and C18.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there about 2.5 V?
- YES -Go to step 4.
- NO -Replace the FTP sensor.
- Turn the ignition switch OFF.
- Remove the EVAP canister cover (see step 1 on EVAP Canister Replacement ).

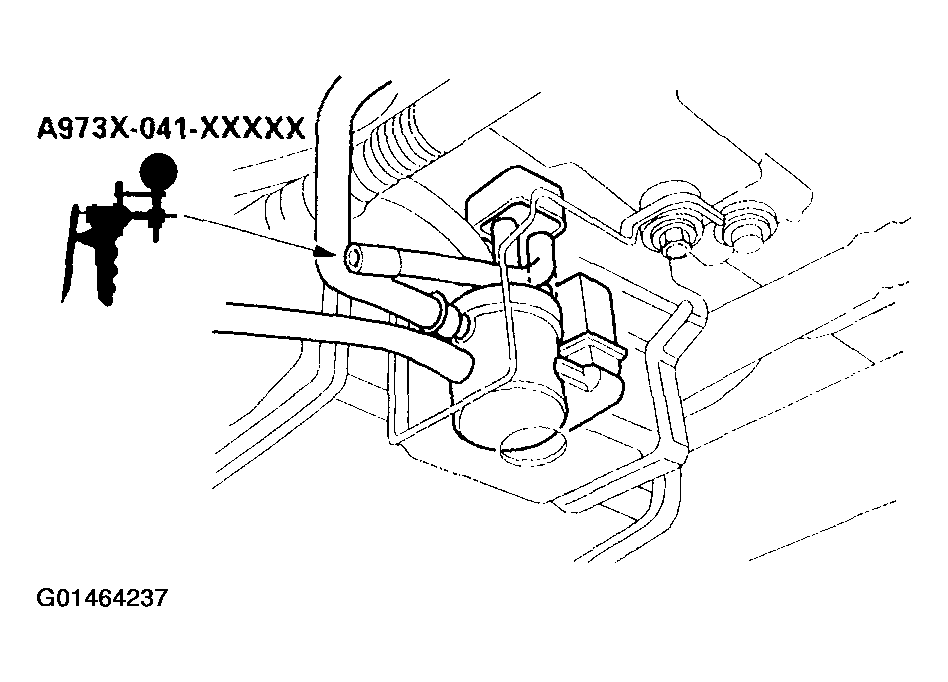

- Disconnect the hose between the EVAP two way valve and the FTP sensor at the EVAP two way valve end.
- Connect a vacuum pump to the open end of that hose.
- Turn the ignition switch ON (II).
