2003 Honda Pilot EXFACTORY OEM SERVICE PROCEDURE
EGR Valve Replacement
- Remove the intake manifold cover (see INTAKE MANIFOLD REMOVAL & INSTALLATION ).
- Disconnect the EGR valve 6P connector.

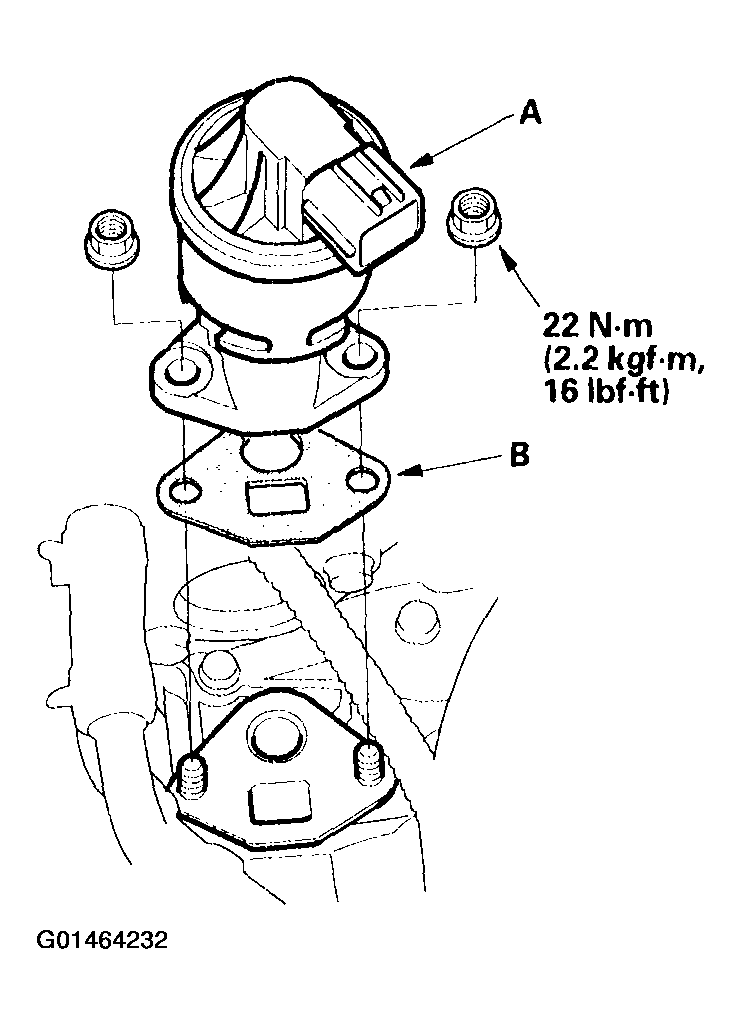

- Remove the EGR valve (A).
- Install the valve in the reverse order of removal with a new gasket (B).
- Install the intake manifold cover (see INTAKE MANIFOLD REMOVAL & INSTALLATION ).
