2003 Honda Pilot EXFACTORY OEM SERVICE PROCEDURE

Electrical Component Locator: Miscellaneous

MISCELLANEOUS LOCATION

Component Component Location
Antenna Amplifier At rear left of roof.
Data Link Connector Lower left side of dash. See Figure.

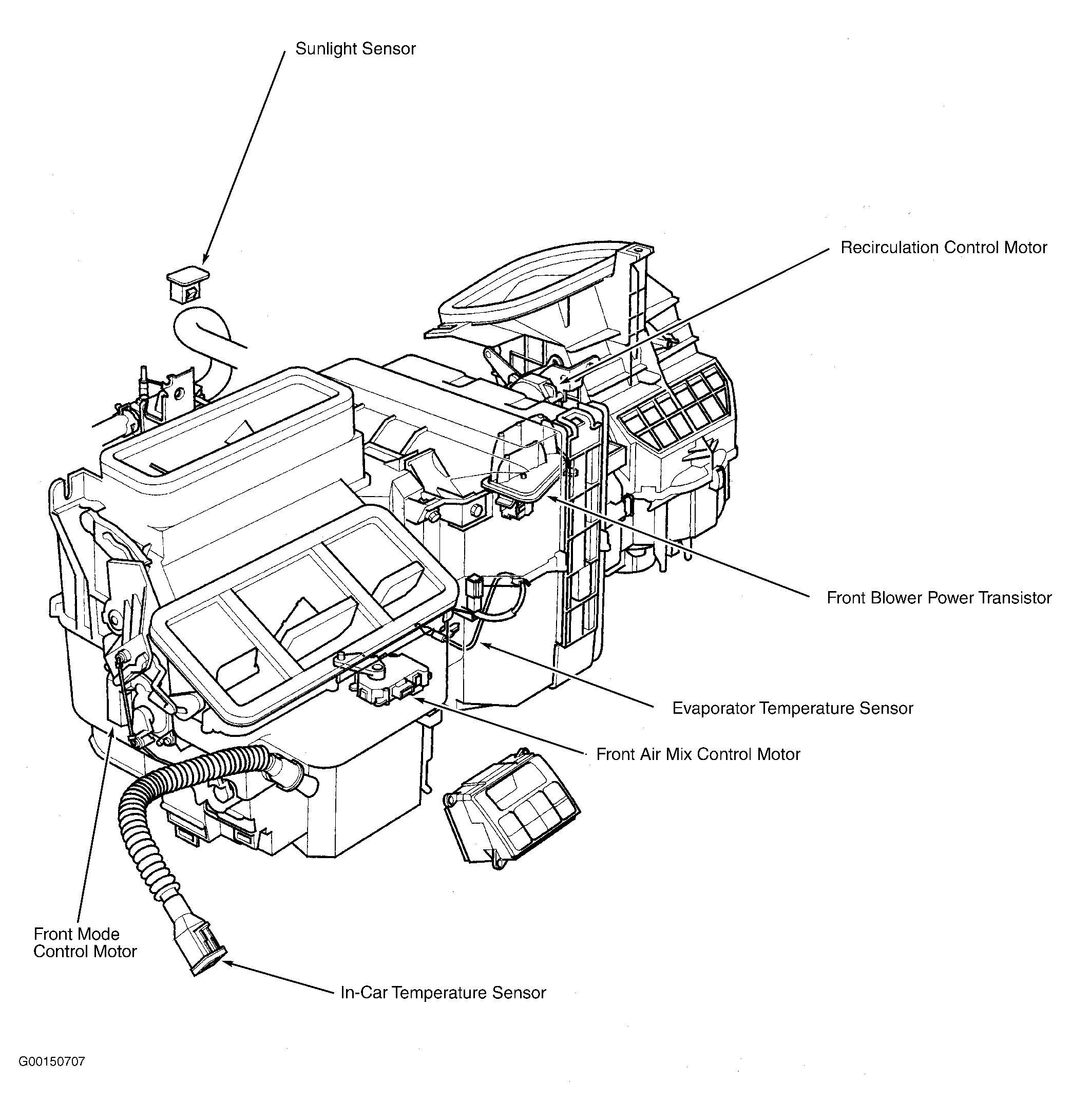

Front Blower Power Transistor On bottom of blower unit, next to front blower motor. See Figure.
GPS Antenna Behind upper center of dash, behind center panel.
Ignition Coils No. 1-6 On top of respective spark plug.
Interior Lights Noise Condenser Behind right side of dash.
Junction Connector C103 At left side of engine compartment.
Junction Connector C104 At left side of engine compartment.
Junction Connector C105 At center of engine compartment.
Junction Connector C106 At center of engine compartment.
Multiplex Control Inspection Connector Behind left side of dash. See Figure.
Navigation Service Check Connector Under right front seat.

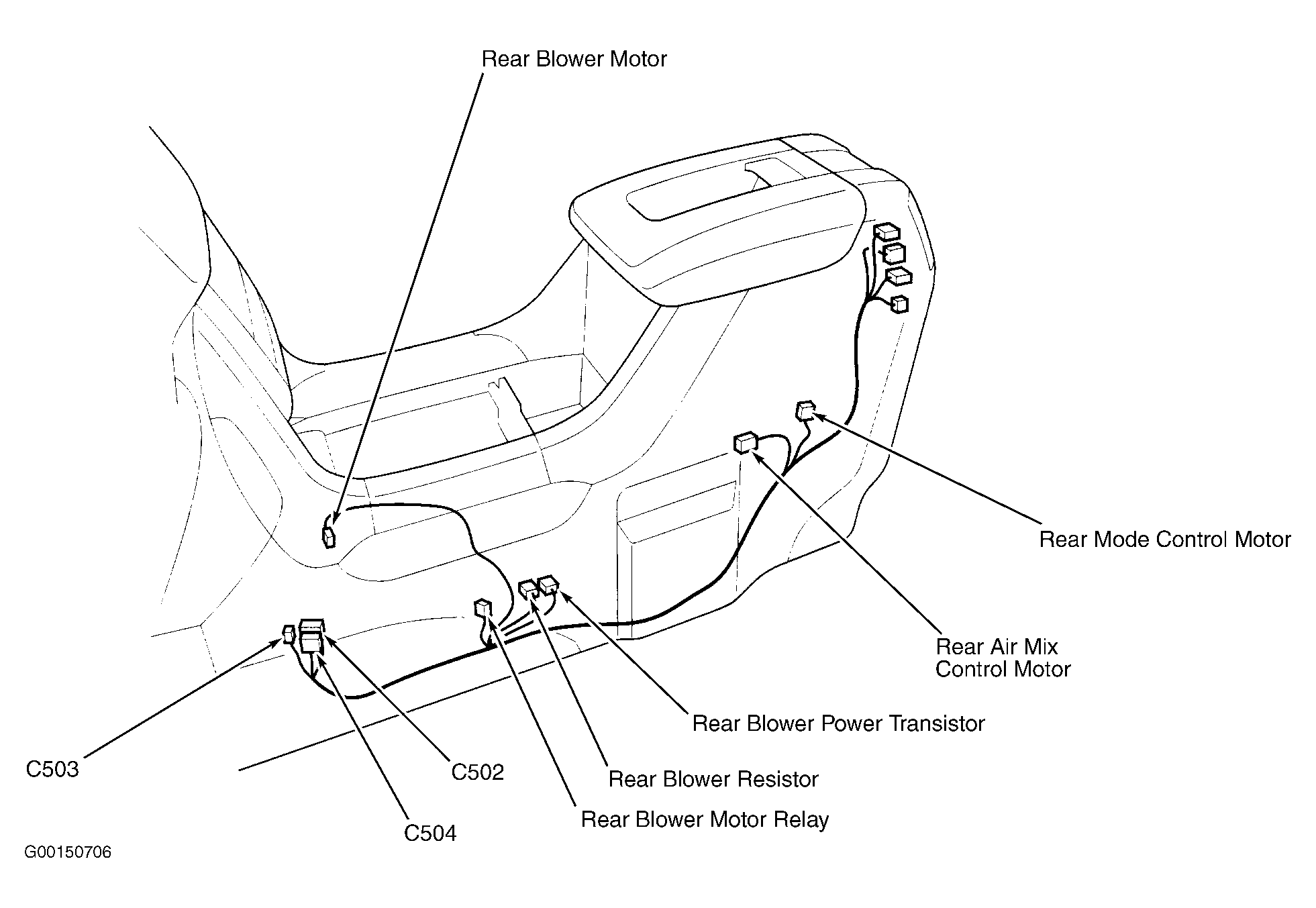

Rear Blower Power Transistor Under center console. See Figure.
Rear Blower Resistor Under center console. See Figure.
Rear Window Defogger Noise Condenser Behind liftgate upper trim.
Test Tachometer Connector At left side of engine compartment.
