2003 Honda Pilot EXFACTORY OEM SERVICE PROCEDURE
Master Switch Replacement
- Carefully pry off the driver's door switch trim (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

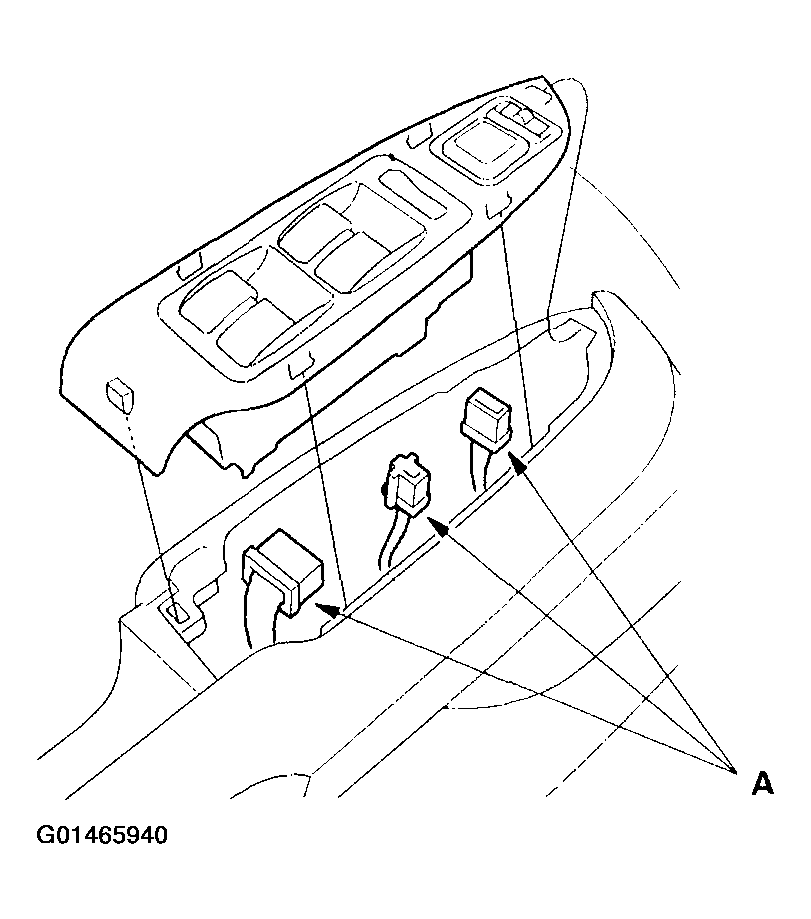

- Disconnect the power mirror and power window switch connectors (A).

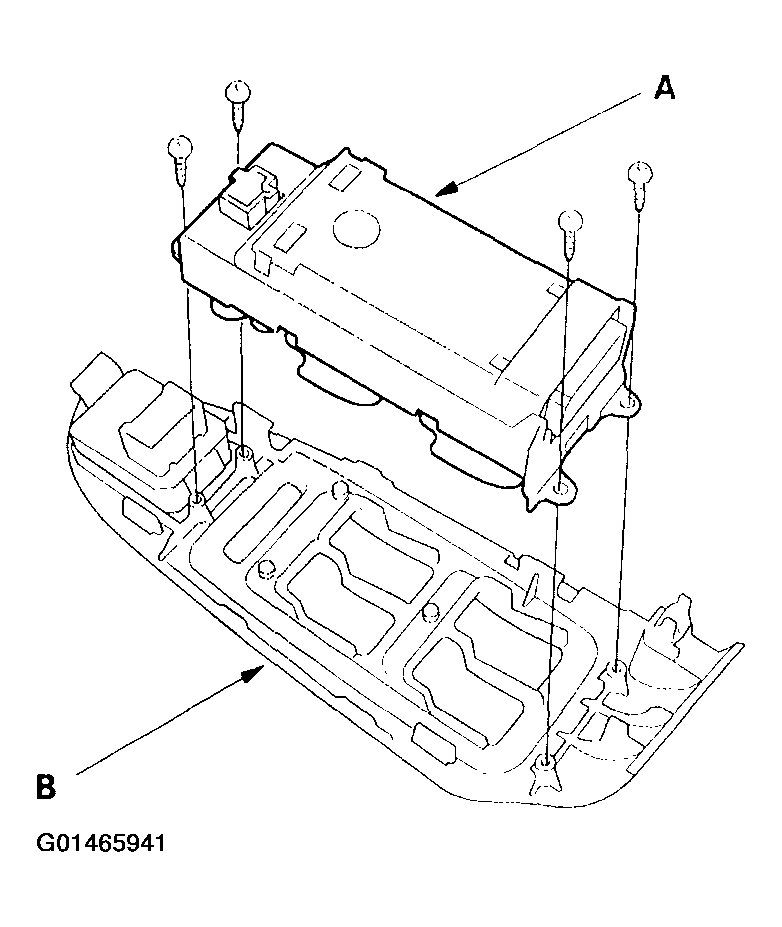

- Remove the four mounting screws, then remove the master switch (A) from the panel (B).
