2002 Honda S2000FACTORY OEM SERVICE PROCEDURE

EVAP Two Way Valve Test

Special Tools Required

  • Vacuum/pressure gauge, 0-4 in.Hg 07JAZ-001000B
  • Vacuum pump/gauge, 0-30 in.Hg, Snap-on YA4000A or equivalent, commercially available
  1. Remove the fuel fill cap.
  2. Disconnect the vapor line from the EVAP two way valve (A). Connect it to a T-fitting (B) from the vacuum gauge and a commercially available vacuum pump/gauge, 0-30 in.Hg, as shown.

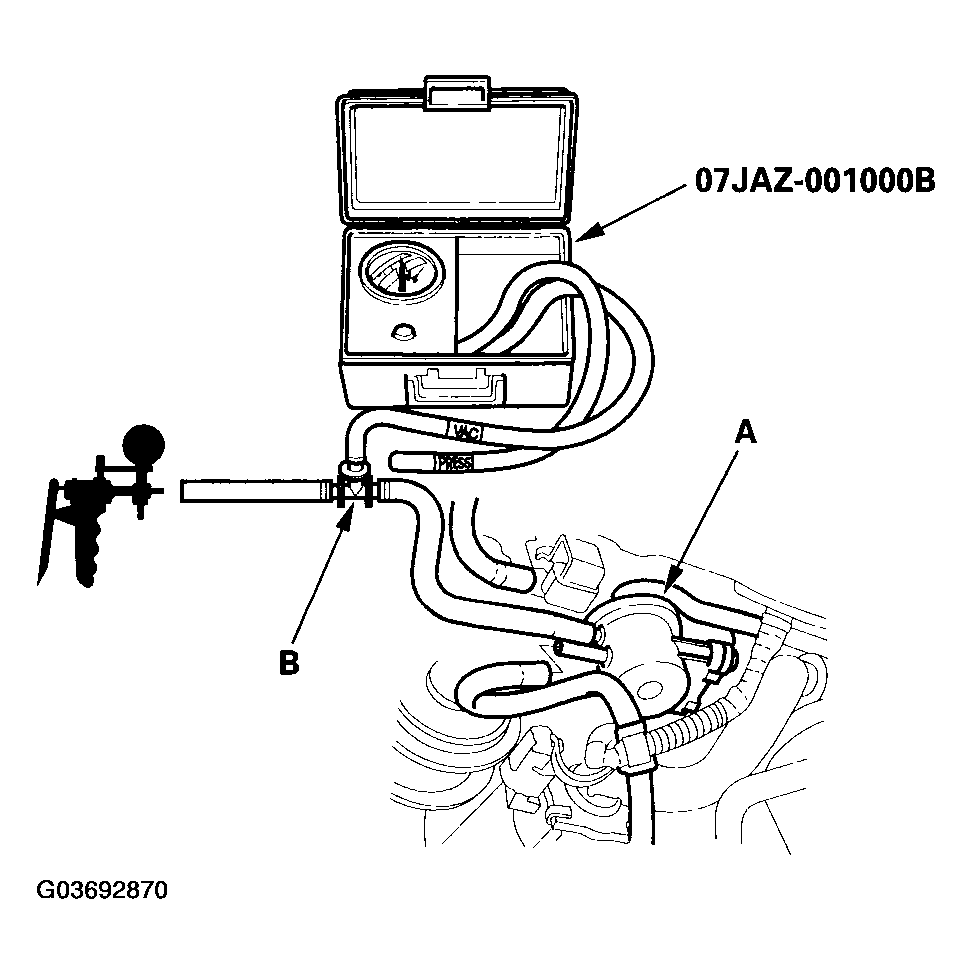

    Fig 1: Disconnecting Vapor Line From EVAP Two Way Valve
    G03692870Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Apply vacuum slowly and continuously while watching the gauge.

    The vacuum should stabilize momentarily at 0.8-2.1 kPa (0.2-0.6 in.Hg, 6-16 mmHg). If the vacuum stabilizes (valve opens) below 0.8 kPa (0.2 in.Hg, 6 mmHg) or above 2.1 kPa (0.6 in.Hg, 16 mmHg), install a new valve and retest.

  4. Move the vacuum pump hose from the vacuum fitting to the pressure fitting, and move the vacuum gauge hose from the vacuum side to the pressure side (A) as shown.

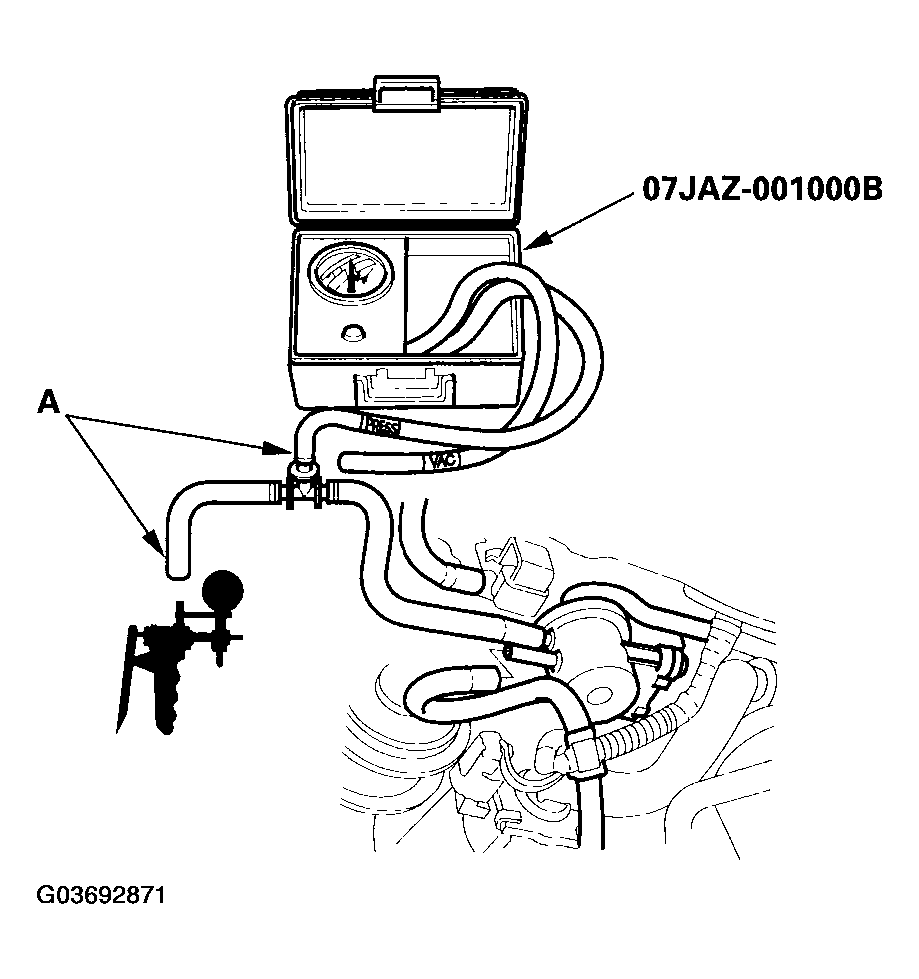

    Fig 2: Moving Vacuum Gauge Hose From Vacuum Side To Pressure Side
    G03692871Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Slowly pressurize the vapor line while watching the gauge. The pressure should stabilize momentarily above 1.0 kPa (0.3 in.Hg, 8 mmHg).
    • If the pressure momentarily stabilizes (valve opens) above 1.0 kPa (0.3 in.Hg, 8 mmHg), the valve is OK.
    • If the pressure stabilizes below 1.0 kPa (0.3 in.Hg, 8 mmHg), install a new valve and retest.
