2002 Honda S2000FACTORY OEM SERVICE PROCEDURE
Convertible Top Disable Switch Test
NOTE:
For the convertible top disable switch circuit diagram, refer to the Convertible Top Circuit Diagram (see CIRCUIT DIAGRAM
) and the Rear Window Defogger Circuit Diagram (see CIRCUIT DIAGRAM
).
- Remove the left rear side trim (see TRIM REMOVAL/INSTALLATION - SEAT SIDE AREA ).

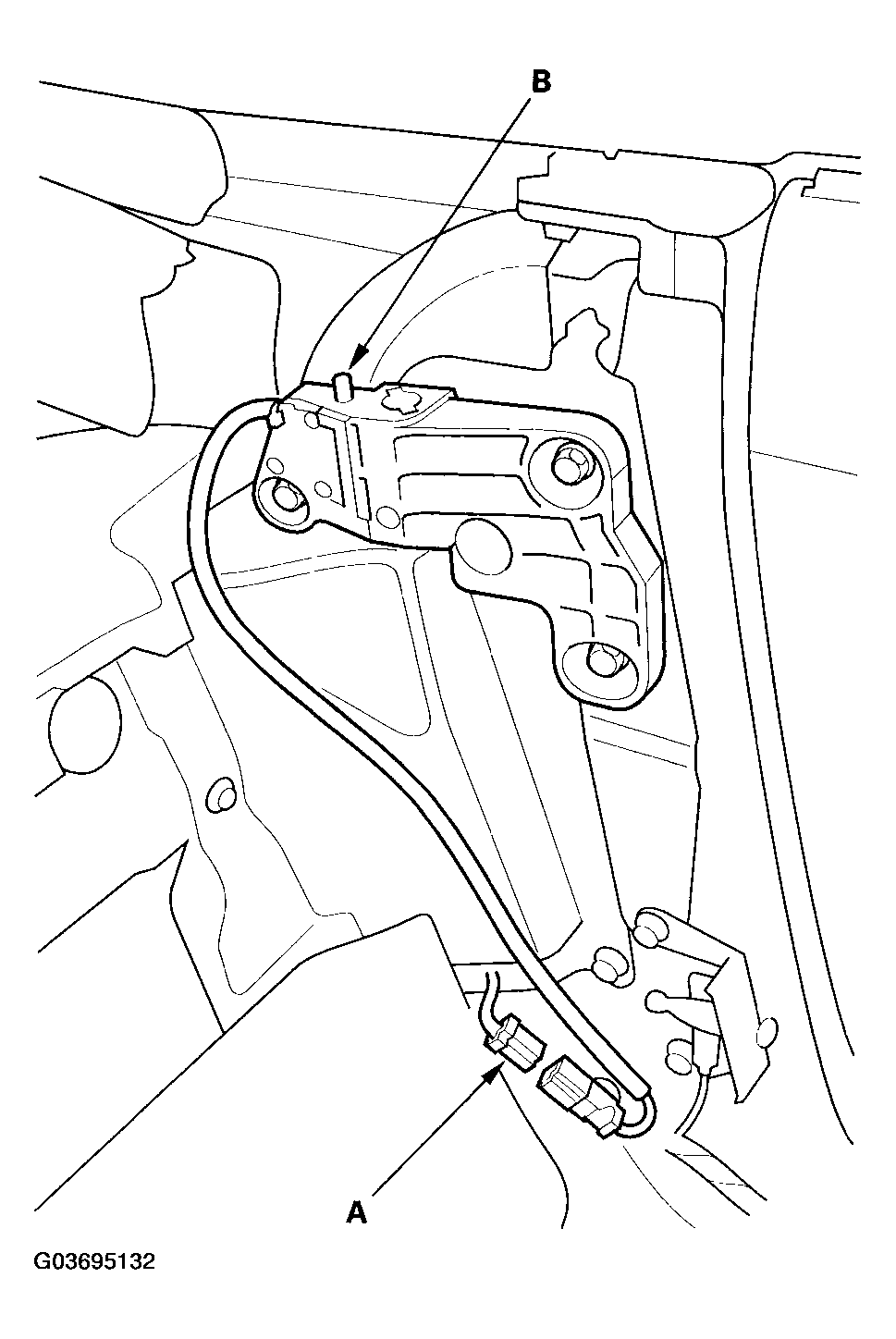

- Disconnect the 2P connector (A) from the convertible top disable switch (B).

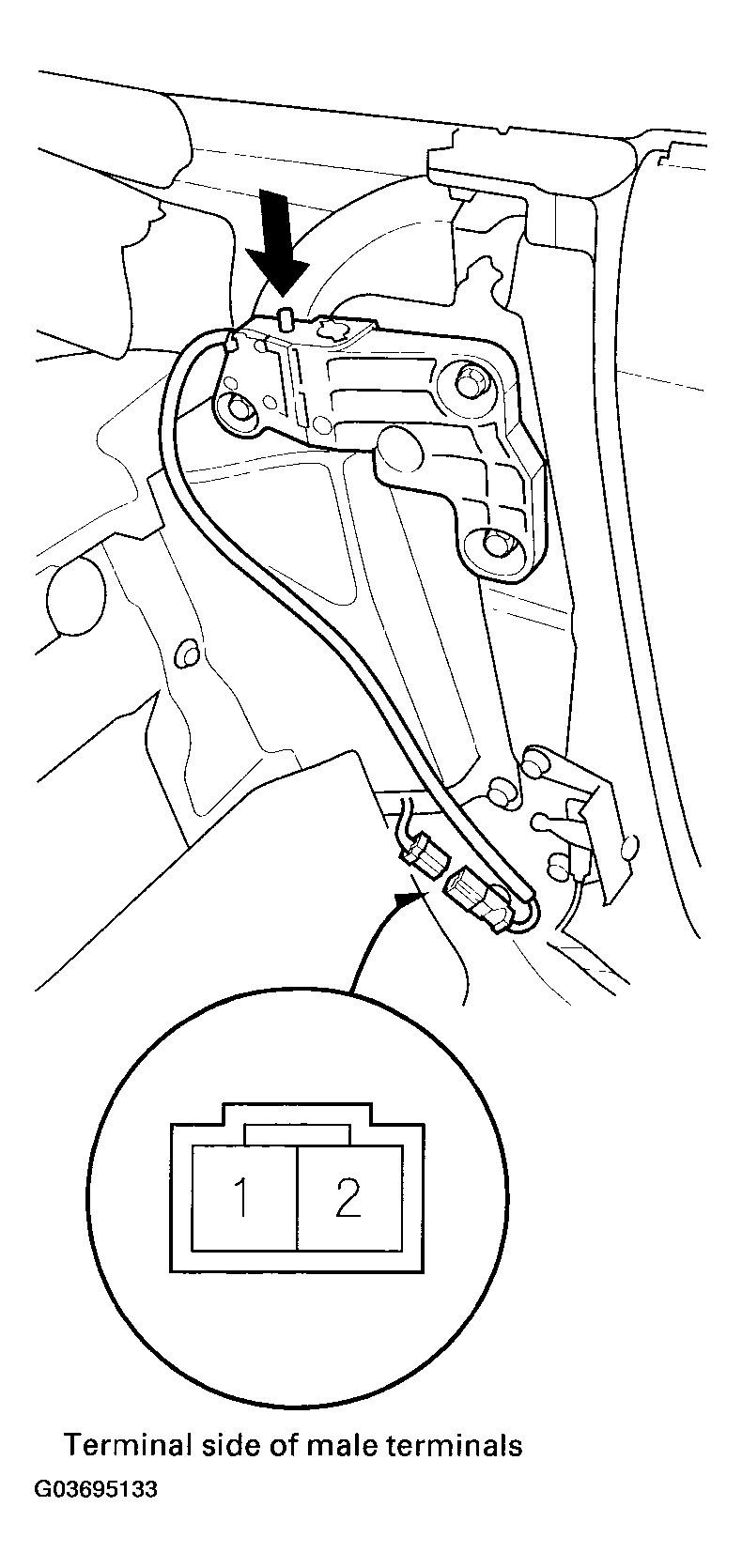

- Push the convertible top disable switch.
- Check for continuity between the No. 1 and No. 2 terminals.
There should be continuity.
- If the continuity is not as specified, replace the switch.
