Ignition Timing Inspection
- Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (see step 2 on IF THE MIL (MALFUNCTION INDICATOR LAMP) HAS COME ON ), and check for DTC's. If a DTC is present, diagnose and repair the cause before inspecting the ignition timing.
- Start the engine. Hold the engine at 3,000 rpm with no load shift lever in Park or Neutral, until the radiator fan comes on, then let it idle.
- Check the idle speed, and adjust it if necessary (see page 11-201).
- Follow the tester's prompts to get the tester in the "SCS" mode (see the tester operator's manual).

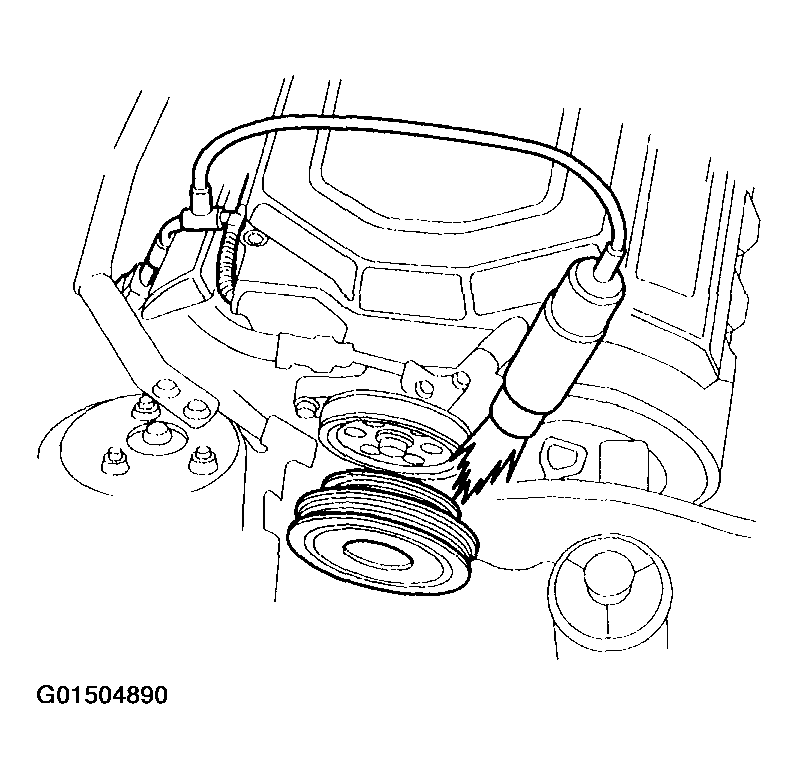

- Connect the timing light to the No. 1 ignition coil wire.

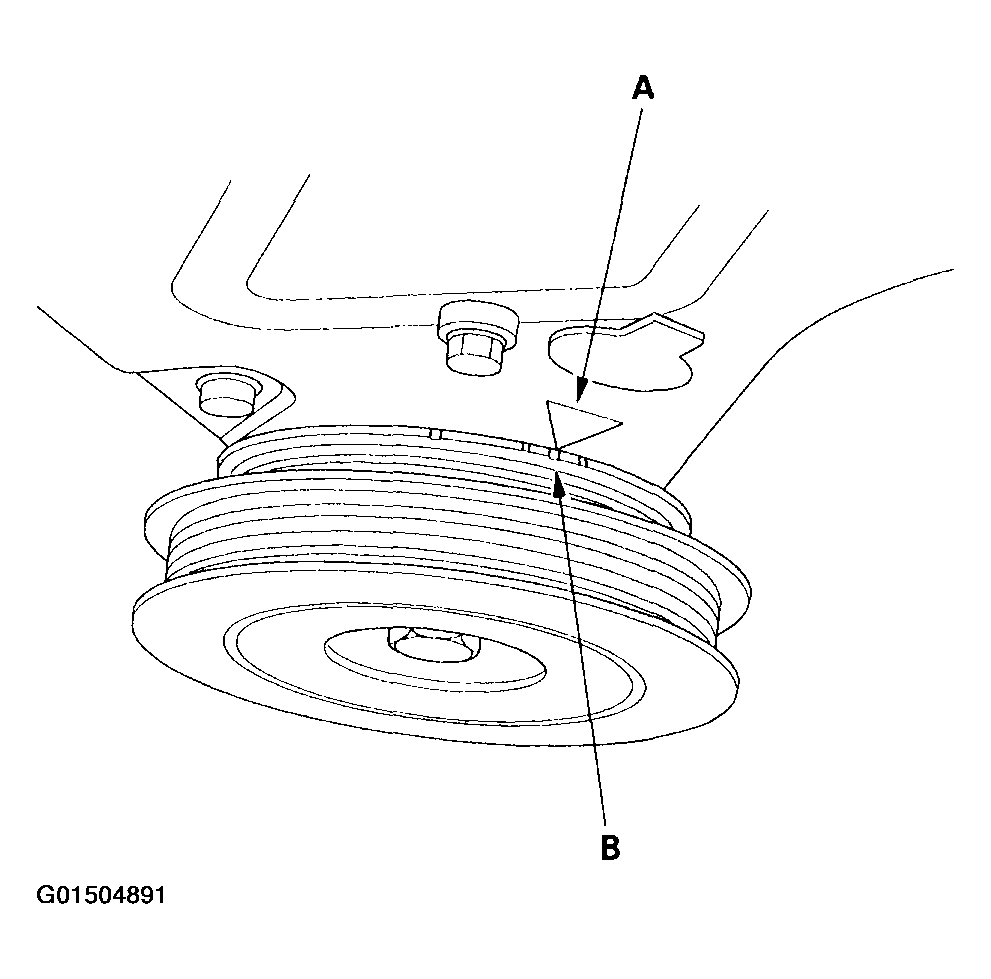

- Aim the light toward the pointer (A) on the timing belt cover. Check the ignition timing under a no load conditions: headlights, blower fan, rear window defogger, and air conditioner are not operating.
Ignition Timing: 10°+/-2°BTDC (RED mark (B)) during idling in Park or Neutral
- If the ignition timing differs from the specification, check the cam timing, and the top dead center (TDC) and crankshaft position (CKP) sensors. If necessary, substitute a known-good powertrain control module (PCM) and recheck . See HOW TO SUBSTITUTE THE PCM FOR TESTING PURPOSE .
- Turn the ignition switch OFF.
- Disconnect the HDS and the timing light.
