Connected ECUs

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Several ECUs are connected to each of the two networks. The gauge control module is part of both networks since it is the "gateway" between them. Here is a list of ECUs and the network they are connected to.

B-CAN ECUs

Gauge control module
Relay control module
Multiplex integrated control unit (MICU)
Door multiplex control unit
Combination switch control unit
MICU-rear junction box
Power tailgate control unit
Power seat control unit
Left power sliding door control unit
Right power sliding door control unit
A/C control panel/climate control unit
Automatic lighting control unit

F-CAN ECUs

Gauge control module
PCM
VSA modulator-control unit
ACM
TPMS control unit

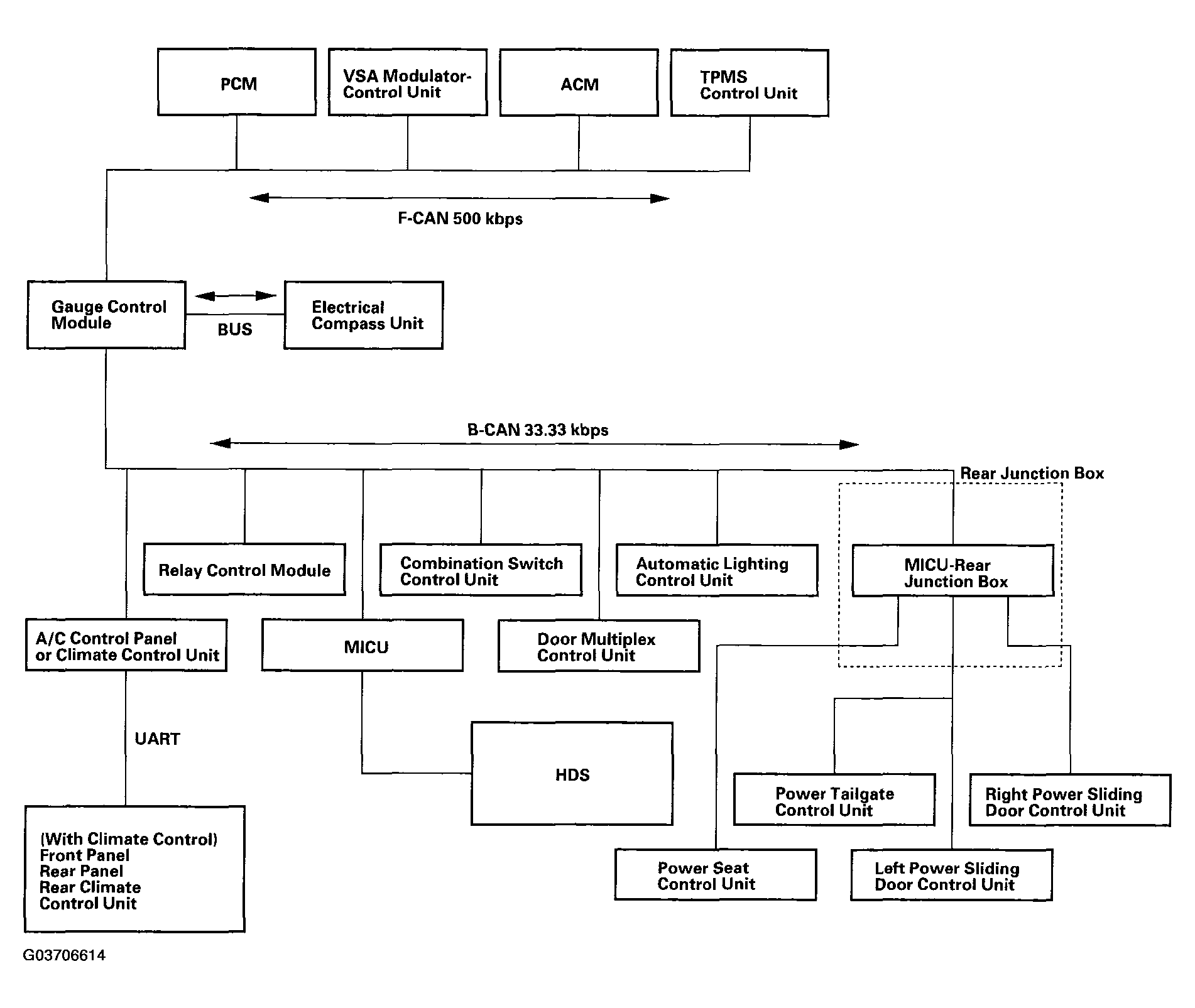

Fig 1: B-Can ECU And F-Can ECU Flow Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
