Disconnect the 5P connector from the power transistor.
Measure the resistance between the No. 1 and. No. 4 terminals of the power transistor. It should be approximately 1.4 - 1.5 kohm.
- If the resistance is within the specifications go to step 3.
- If the resistance is not within the specifications replace the power transistor.

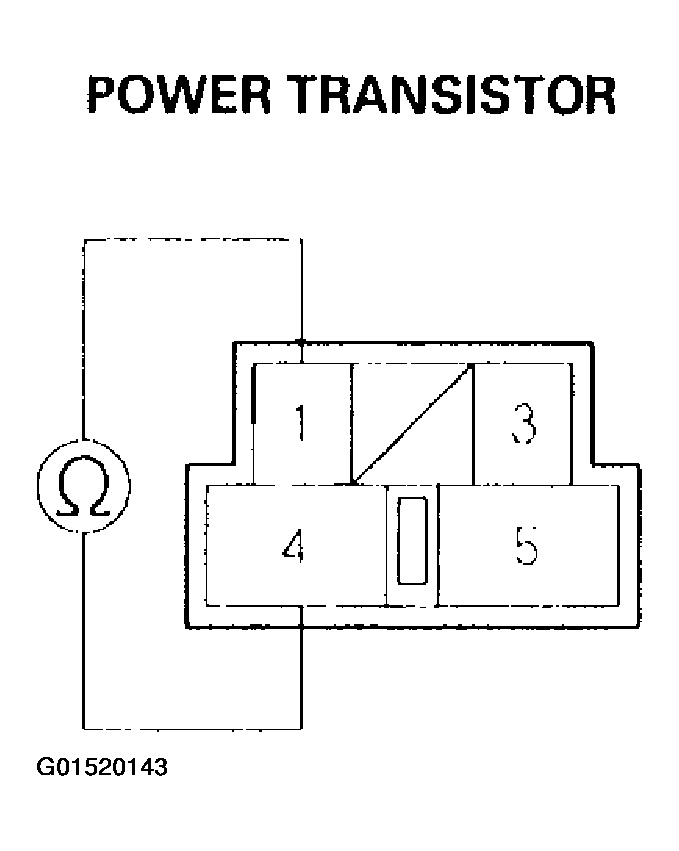

Fig 1: Measuring Resistance Between No. 1 & No. 4 Terminals Of Power Transistor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Carefully release the lock tab on the No. 3 terminal (ORN/BLK) (A) in the 5P connector then remove the terminal and insulate it from body ground.

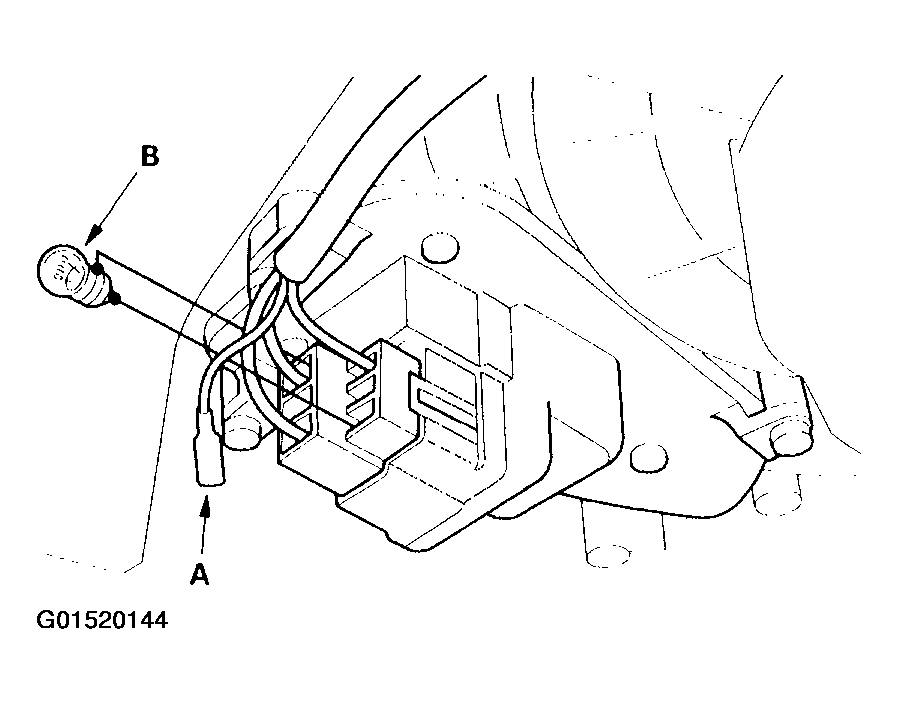

Fig 2: Carefully Releasing Lock Tab On No. 3 Terminal (ORN/BLK) (A) In 5P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect a 1.2 - 3.4 W bulb (B) between the No. 3 and the No. 4 cavity on the 5P connector.
Reconnect the 5P connector to the power transistor.
Turn the ignition switch ON (II) and check that the blower motor runs.
- If the blower motor does not run replace the power transistor.
- If the blower motor runs replace the climate control unit.
