2002 Honda Insight StandardFACTORY OEM SERVICE PROCEDURE
Without Navigation System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the center panel with the climate control unit (see CENTER PANEL REMOVAL/INSTALLATION ).

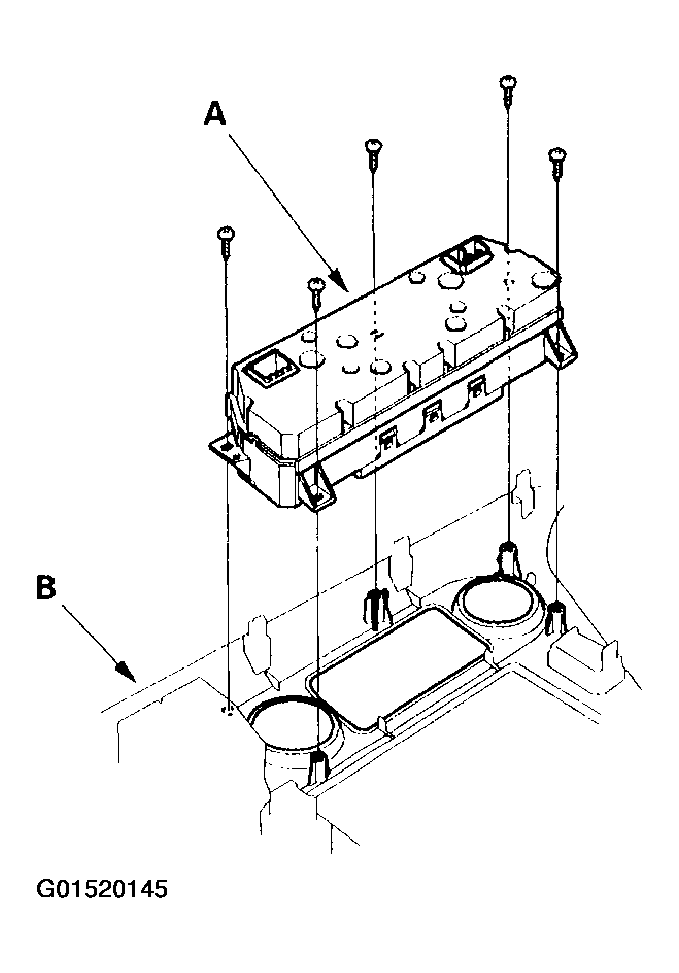

- Remove the self-tapping screws and the climate control unit (A) from the center panel (B).
- Install the control unit in the reverse order of removal After installation operate the control unit controls to see whether it works properly.
- Run the self-diagnosis function to confirm that there are no problems in the system (see General Troubleshooting Information ).
