2002 Honda Insight StandardFACTORY OEM SERVICE PROCEDURE

With Navigation System

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the No. 3 (7.5A) fuse in the driver's under-dash fuse/relay box.

    Is the fuse OK?

    1. YES  - Go to step 2.
    2. NO  - Replace the fuse and recheck.
  2. Disconnect the climate control panel 16P connector.
  3. Turn the ignition switch ON (II).
  4. Measure the voltage between the No. 6 terminal of the climate control panel 16P connector and body ground.

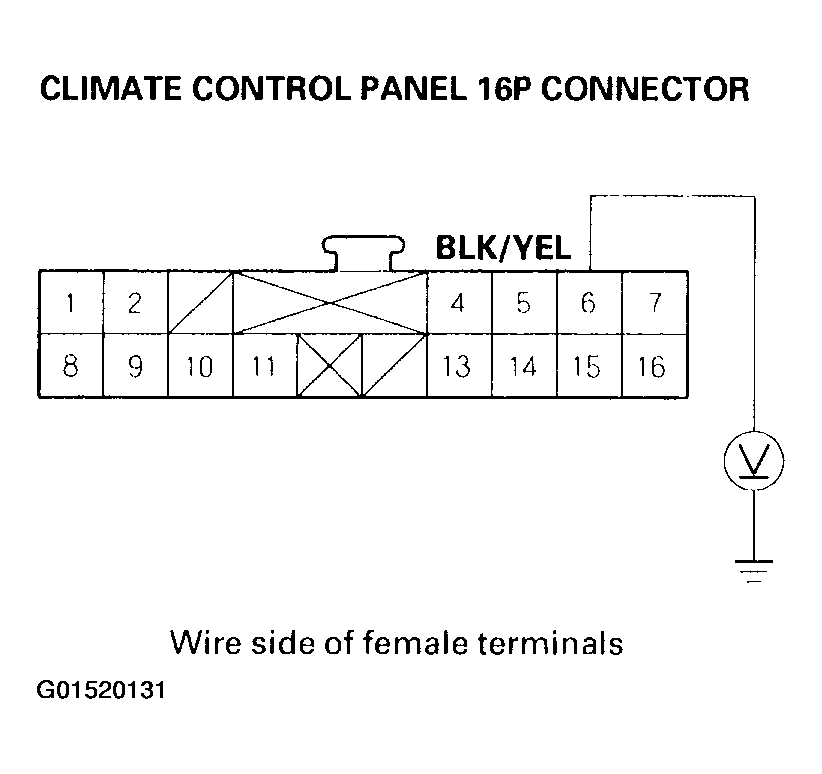

    Fig 1: Measuring Voltage Between No. 6 Terminal Of Climate Control Panel 16P Connector & Body Ground
    G01520131Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there battery voltage?

    1. YES  - Go to step 5.
    2. NO  - Repair open in the wire between the No. 3 fuse in the driver's under-dash fuse/relay box and the climate control panel.
  5. Turn the ignition switch OFF.
  6. Disconnect climate control unit connectors A (16P) and B (26P).
  7. Check for continuity between the following terminals of climate control panel 16P connector and climate control unit connectors A (16P) and B (26P).
    CLIMATE CONTROL PANEL CONNECTOR-TO-CLIMATE CONTROL CONNECTORS CONTINUITY CHART

    Climate Control Panel 16P Connector Terminal Climate Control Unit Connectors A (16P) Terminal
    No. 4 No. 11
    No. 5 No. 13
    No. 13 No. 12
    CLIMATE CONTROL PANEL CONNECTOR-TO-CLIMATE CONTROL CONNECTORS CONTINUITY CHART

    Climate Control Panel 16P Connector Terminal Climate Control Unit Connectors B (26P) Terminal
    No. 7 No. 2
    No. 11 No. 160

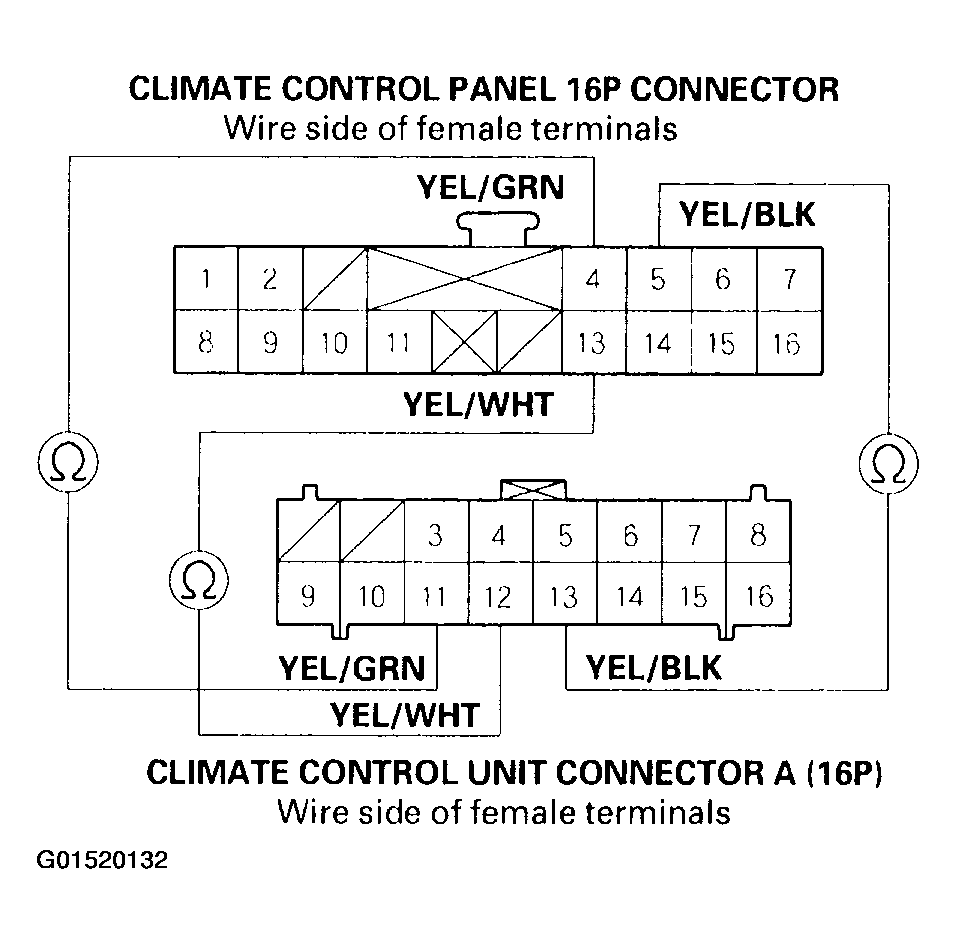

    Fig 2: Checking Continuity Between Following Terminals Of Climate Control Panel 16P Connector & Climate Control Unit Connectors A (16P).
    G01520132Courtesy of AMERICAN HONDA MOTOR CO., INC.
