2002 Honda Insight StandardFACTORY OEM SERVICE PROCEDURE
Forced Starting of Display
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required: SCS service connector 07PAZ-0010100

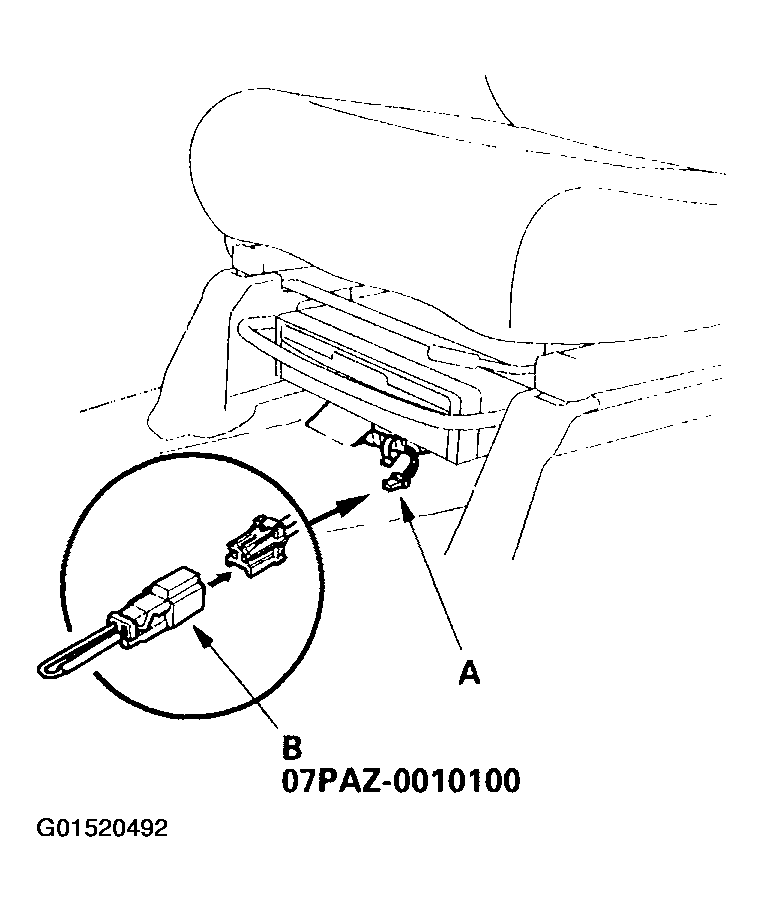

- Locate the navigation service check connector (A) under the front passenger's seat.
- Connect the SCS service connector (B) to the navigation service check connector (A).
- Check that the diagnosis menu for the picture diagnosis starts up, and then changes to the system link menu.
- If the display does not turn on, turn the ignition switch OFF, press and hold the SET UP button (A), press and hold the joystick (B) up, then turn ignition switch to ACC (I).NOTE: If the display fails to light or the system link screen is not displayed, refer to no picture is shown on the display (see No picture is shown on the display ).
