Remove the driver's multiplex control unit from the driver's under-dash fuse/relay box.
Carefully pry off driver's door switch trim (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect door multiplex connector A (20P).
Check for continuity between No. 2 terminal of the driver's under-dash fuse/relay box socket and No. 15 terminal of the door multiplex control unit connector A (20P).

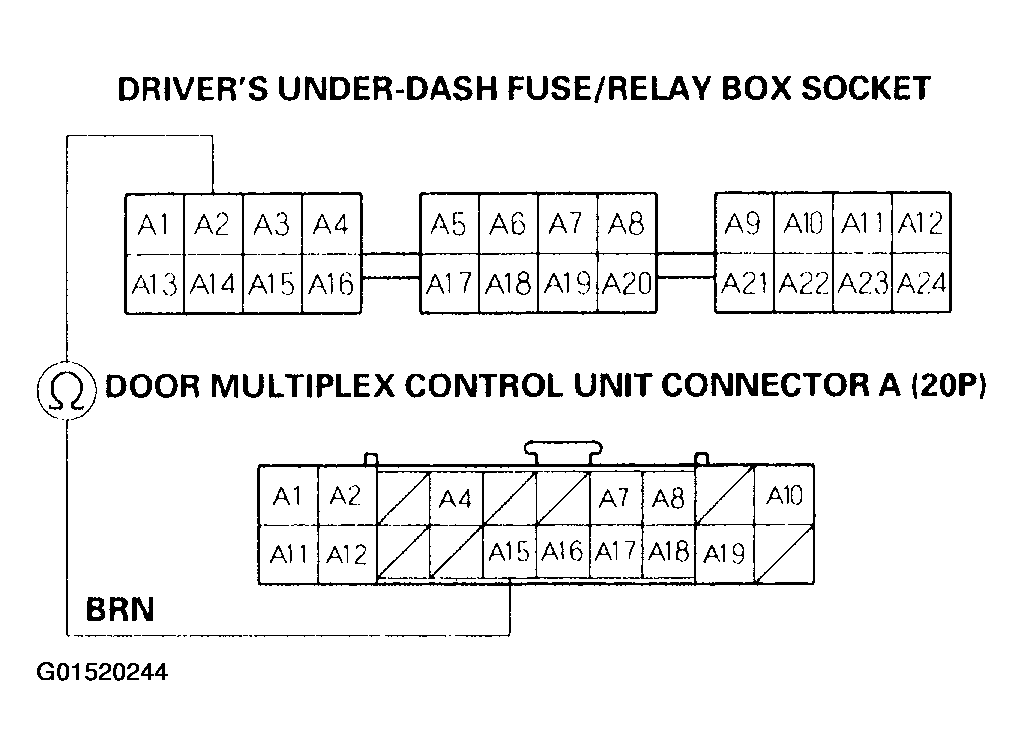

Fig 1: Checking Continuity Between No. 2 Terminal Of Driver's Under-Dash Fuse/Relay Box Socket & No. 15 Terminal Of Door Multiplex Control Unit Connector A (20P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?
1. YES: Replace the multiplex control unit most closely related to failure.
2. NO: Repair an open in the wire between the door multiplex connector and the driver's under-dash fuse/relay box. If the wire is OK, replace the under-dash fuse/relay box.
