System Diagnostic Mode: Version

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

This are screen displays the current version of the program, and allows the loading of a new version of the program either from a CD/DVD or from a PC card.

The D-RAM Program version should always be greater than or equal to the Disc Program version. The mapped database version is the date of the database on the DVD.

The Model code is SHJA, and is for factory use only. This code is stored on a chip in the navigation unit. Therefore, every model has a unique part number for the navigation unit.

NOTE: If any model number other than SHJA is displayed, replace the navigation unit with the correct part. The model code tells the navigation unit what software to load off the DVD.

Do not use Download, unless instructed to do so by the factory.

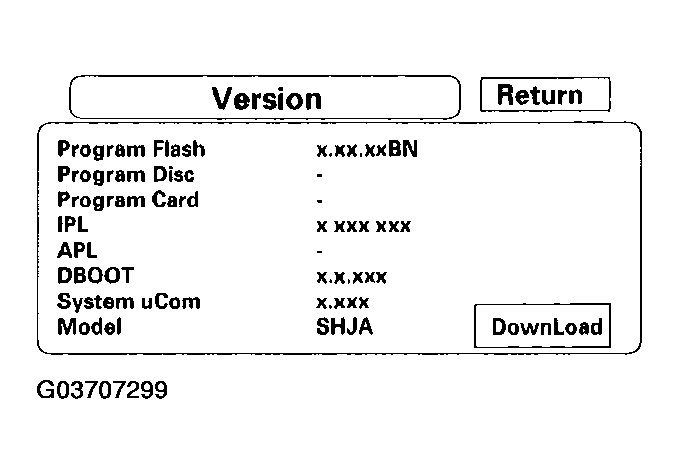

Fig 1: Version Display
G03707299Courtesy of AMERICAN HONDA MOTOR CO., INC.

There are two Navigation DVDs produced for this model.

  • The DVD labeled "United States" is for the US market and contains maps for the contiguous 48 US states, Hawaii, and some southern portions of Canada. Customers wanting additional northern coverage in Canada, can purchase a "Canada" DVD by contacting the DVD fulfillment desk.
  • The DVD labeled "Canada", is for the Canada market, and contains maps for all of Canada, plus some of the northern US states. If customers with this DVD require full US coverage (including states like Florida and Texas), they may purchase a "United States" DVD by contacting the DVD fulfillment desk.
