Vehicle Speed Pulse

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

The vehicle speed pulse is sent by the PCM. The PCM receives a signal from the countershaft speed sensor, then it processes the signal and transmits it to the speedometer and other systems.

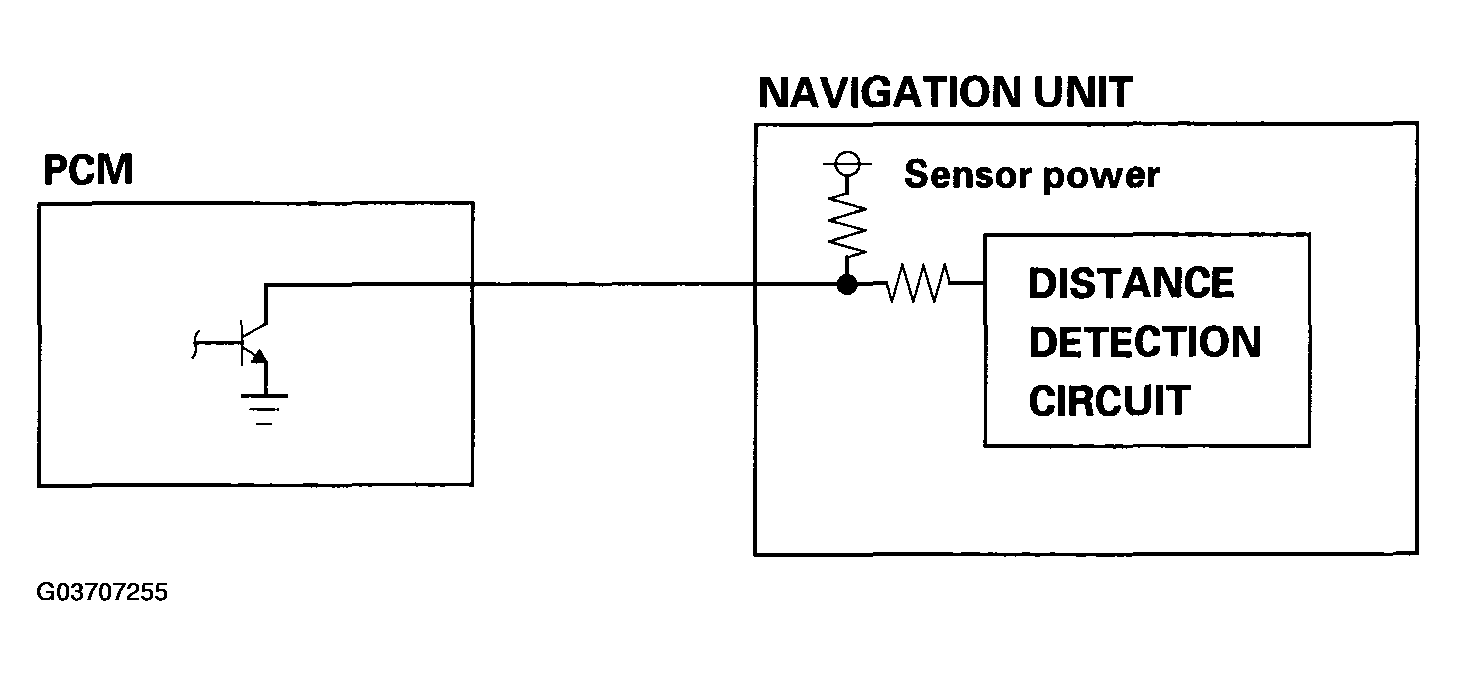

Fig 1: Vehicle Speed Pulse Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
