2002 Honda Insight StandardFACTORY OEM SERVICE PROCEDURE
Navigation frequently asks for code and needs GPS initialization
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
- Check for battery voltage on navigation unit connector C (8P) terminals No. 1 and No. 2.
Is there battery voltage?
- YES - Go to step 2.
- NO - Repair the circuits.

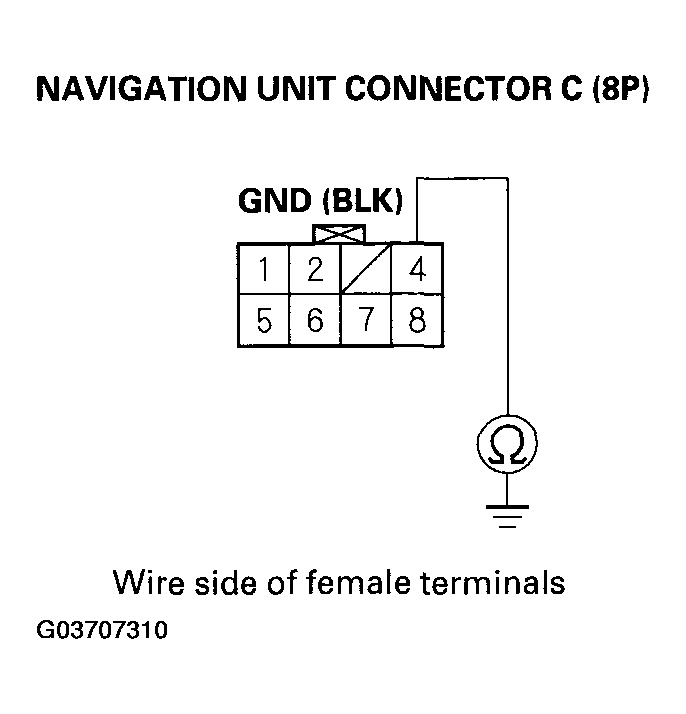

- Check for continuity between navigation unit connector C (8P) terminal No. 4 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
- YES - Replace the navigation unit.
- NO - Repair the open in the circuit.
