2002 Honda Insight StandardFACTORY OEM SERVICE PROCEDURE

Switch Test/Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power seat adjustment switch knobs (A) and recline cover from the driver's power seat (see FRONT SEAT DISASSEMBLY/REASSEMBLY - MANUAL HEIGHT ADJUSTABLE ), then remove the two screws and the power seat switch.

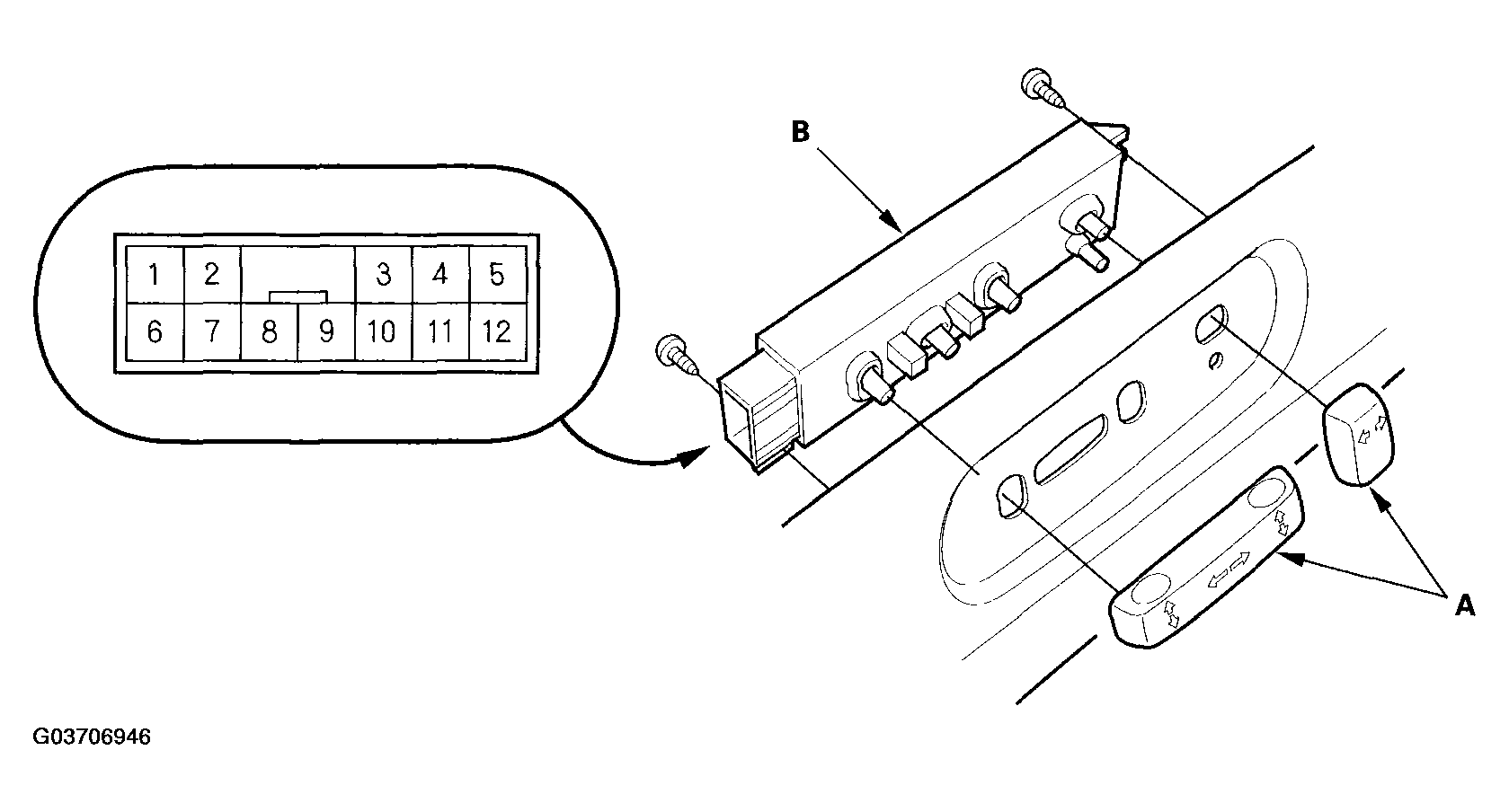

    Fig 1: Removing Power Seat Adjustment Switch Knobs And Recline Cover From Driver Power Seat
    G03706946Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the 12P connector from the power seat adjustment switch (B).
  3. Reinstall the adjustment switch knobs to the switch.
  4. Check for continuity between the terminals in each switch position according to the table shown in Fig 2.

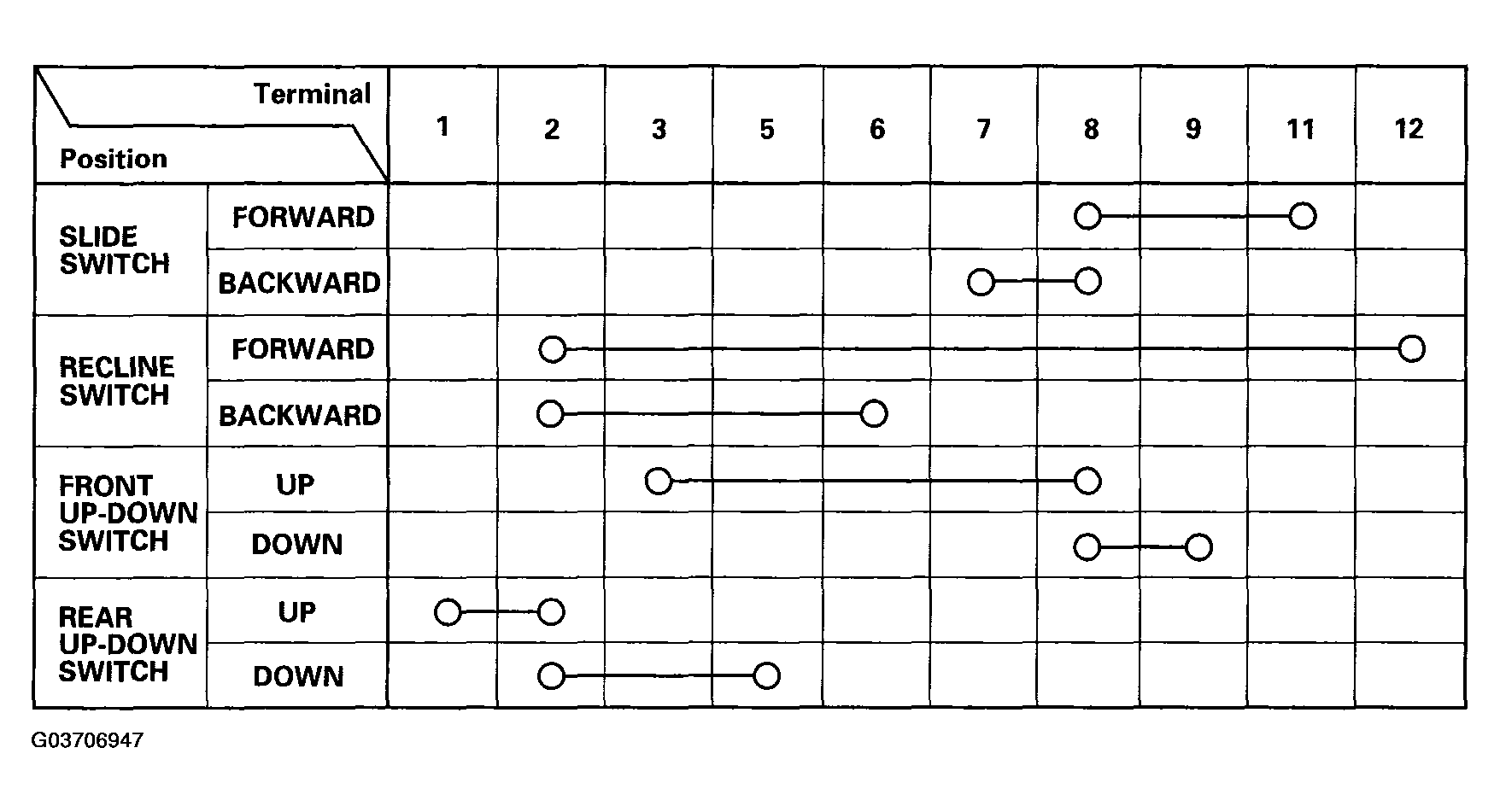

    Fig 2: Checking Continuity Between Terminals In Each Switch Position Table
    G03706947Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the continuity is not as specified, replace the switch.
